1394T101 Turn Coordinator | 11-32V, 5-Pin, Lighted, Autopilot, Black Ball, Brushless
Product Description
The 1394T101 series Turn Coordinator is a panel-mounted instrument designed to display the combined rate of turn and rate of roll information as a rotating aircraft symbol, which aids in performing a standard-rate turn of 360 degrees in two minutes and aircraft control in partial panel instrument conditions. The instrument also includes an inclinometer which indicates slip or skid when not in a coordinated turn. The 1394T101 series does not contain any moving parts other than the displayed indication, and therefore does not make any audible sounds while powered on. Valid operation is confirmed by the absence of the red flag and/or by the optional “Tach” output signal.

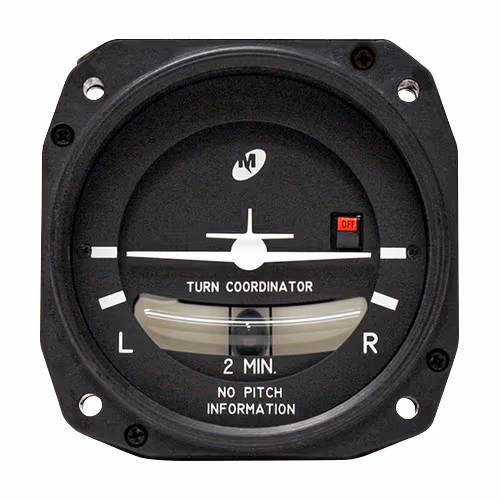

This 1394T101 series Turn Coordinator (EDMO# 1394T10114) operates on 11-32V with a 5-pin connector, has a lighted bezel, black ball inclinometer indicator, autopilot pickoffs and valid signal outputs, and a brushless rotor.
Features
- 4,500 hours MTBF
- Standard 2-minute turn indication
- Autopilot pickoffs and Valid signal
- 11 – 32V input voltage range
- 0.80A max starting, 0.35A running
- Lighted bezel
- White inclinometer background with black ball
- HEA non-glare glass
- Compact 3 1/8" size fits standard panel cutout
- Front or rear panel mount
- One-year limited warranty
- Designed and built in Wichita, Kansas, USA
- FAA TSO certified to C3e
Specifications
Weight:
0.9 lbs
Dimensions:
3.25 x 3.25 x 5 in
MTBF:
4,500 Hours
Turn Indication:
Standard 2-minute turn
Outputs:
Autopilot pickoffs and Valid signal
Operating Temperature:
-45°C to +70°C
Operating Altitude:
-1,000 ft. to 25,000 ft.
Input Voltage Range:
11 – 32V
Power Consumption:
0.80A max starting, 0.35A running
Bezel:
Lighted, 28V White LED standard
Glass:
HEA non-glare
Mounting:
3 1/8” front or rear panel
Inclinometer Color:
White background, black ball
Connector:
5-pin
Certification:
FAA TSO certified to C3e
RTCA DO-160G qualified
Product Codes
- Mfr Part No:1394T101-14RB
- EDMO #:1394T10114
- Brand:MID-CONTINENT INSTRUMENTS AND AVIONICS
- Category:Clocks & Instruments
