M12883 Series Relay Socket | Extended Height, 2 Pole, Size 16 Contacts, 8 Position, Fixed Stainless Steel Studs, 10A
Product Description
M12883 Series Relay Sockets are qualified to MIL-PRF-12883 specifications and have an amp range between 2 and 25. Offered in various types and configurations, they feature state of the art ultrasonically bonded interfaces between the dielectric components, eliminating air paths and providing protection against moisture and degradation.

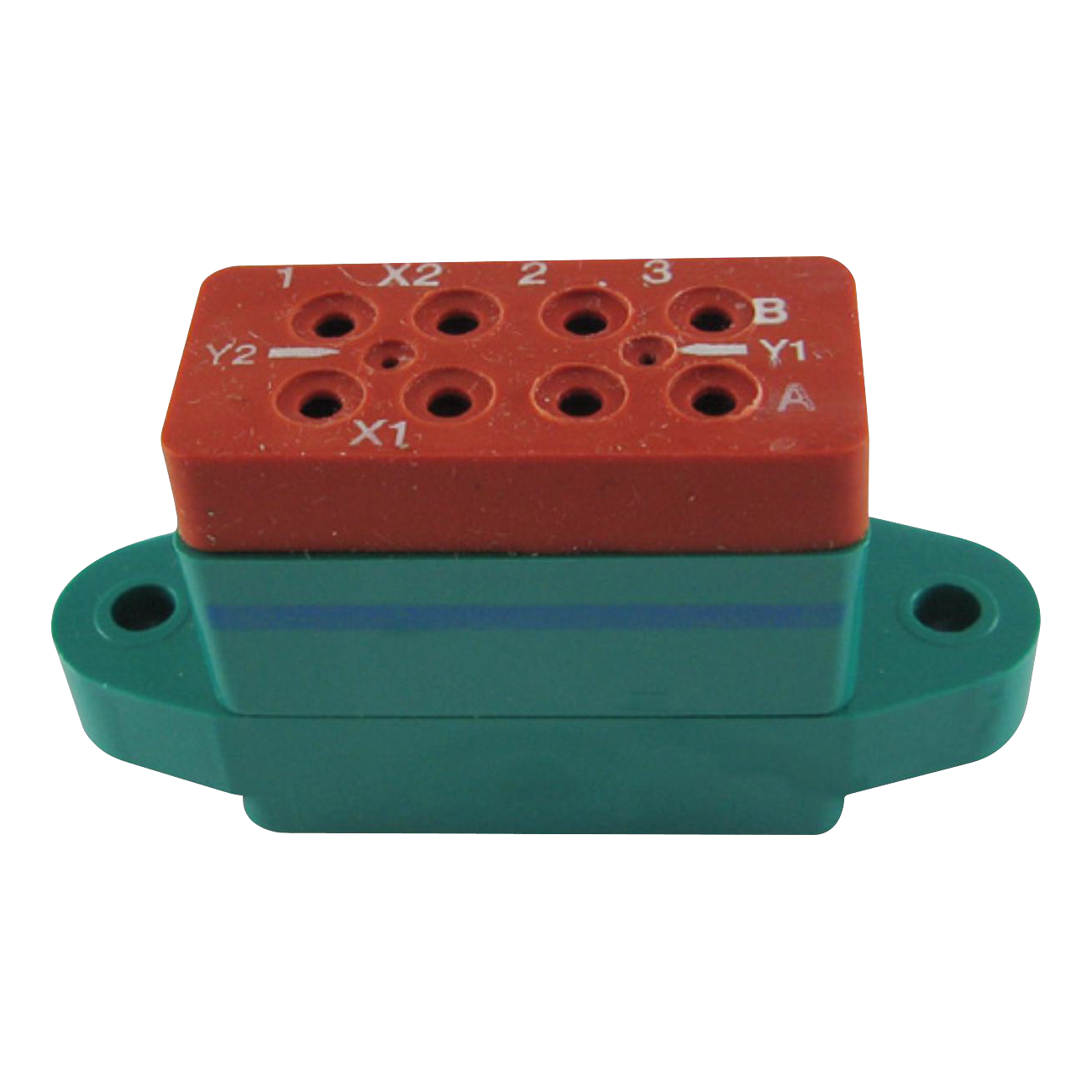

This M12883 Series Relay Socket (EDMO# 128834106S) is an extended height relay socket that accepts size 16 contacts and features 2 poles, 8 contact positions, fixed mounting stainless steel studs, and a 10-amp current rating.
Specifications
Weight:
0.073 lbs (33 g)
Dimensions:
1.74 x 0.53 x 1.130 in
Mounting Stud:
Fixed
Contact Positions:
8
Contact Size:
16
Current Rating:
10 A
Number of Poles:
2
Temperature:
-65ºC to 125ºC
Insulation Resistance:
1000 Megaohms Min.
Dielectric Withstanding Voltage:
1500 VRMS at Sea Level, 500 VRMS at 80,000 ft.
Vibration:
MIL-STD-202, Method 204 Test Condition G
Shock:
MIL-STD-202, Method 213 Test Condition C
Module Body:
Polyetherimide per ASTM-D5205
Grommet:
Silicone Rubber per A-A-59588
Hardware:
Stainless Steel
Contact Retainers:
Stainless Steel
Socket Contacts:
Stainless Steel, Hard Gold Plated in Accordance with SAE-AMS-2422
Product Codes
- Mfr Part No:M12883/41-06S
- EDMO #:128834106S
- Brand:AMPHENOL
- Category:Electrical Interconnect
- SCHEDULE B CODE:8536.69.8000
