VHF/UHF Tunable Antenna | 30-512MHz
Product Description

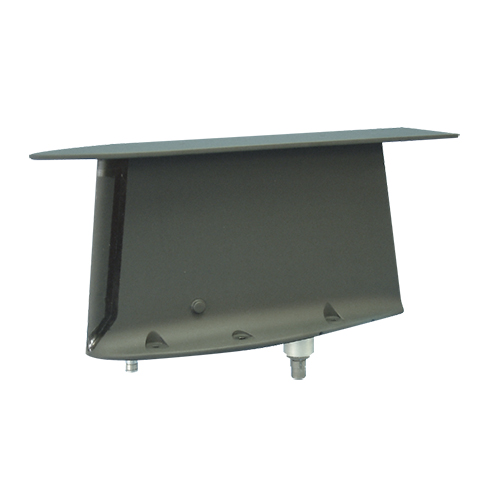

The 12-190-160 V/UHF Tunable Antenna is a low profile, tunable, V/UHF blade antenna operating in the frequency band 30 MHz to 512 MHz, and intended for use in general, rotary wing applications. The 12-190-160 meets the stringent requirements of the military and provides unrivaled RF, mechanical and environmental performance. The antenna is configured as two separate radiating structures, fed from a single RF connector.
Features
- VHF/UHF
- 30-512 MHz
- Low profile
- Tunable
- Blade style
- Molded composite
- Aluminum base plate
Specifications
Weight:
3.52 lb
Dimensions:
6.5 x 14.20 x 3.6 in.
Frequency:
30 MHz - 88 MHz
118 MHz - 174 MHz
225 MHz - 512 MHz
Gain:
dBi MHz
≥ -15 30
≥ -7 88
≥ -3 average 118 - 174
≥ 0 average 225 - 512
RF power:
25W
Impedance:
50Ω, nominal
Radiation Pattern:
Omnidirectional in azimuth
VSWR:
≤ 2.5:1
Polarization:
Vertical when mounted vertically
Connectors:
RF Type TNC female
DC D38999 / 49WB35PN
Product Codes
- Mfr Part No:12-190-160
- EDMO #:12-190-160
- Brand:CHELTON
- Category:Antennas & Couplers
