Gemini A Toggle Switch | Single Pole - Double Throw, Panel Mount, On-Off-On
Product Description
The TE Connectivity extensive Gemini A and Gemini AE Series offer one an two poles with multi-circuit configurations, including: momentary function, locking toggle to avoid unwanted switching as well as bat and flat toggles in different lengths. The Gemini AE Series meets IP67 requirements. Terminals are epoxy sealed to prevent the entry of flux, solvent and other contaminants. Gemini A & Gemini AE Switches are available with solder lug, PC, wire wrap, vertical bracketed, and angle-mount PC terminal choices.

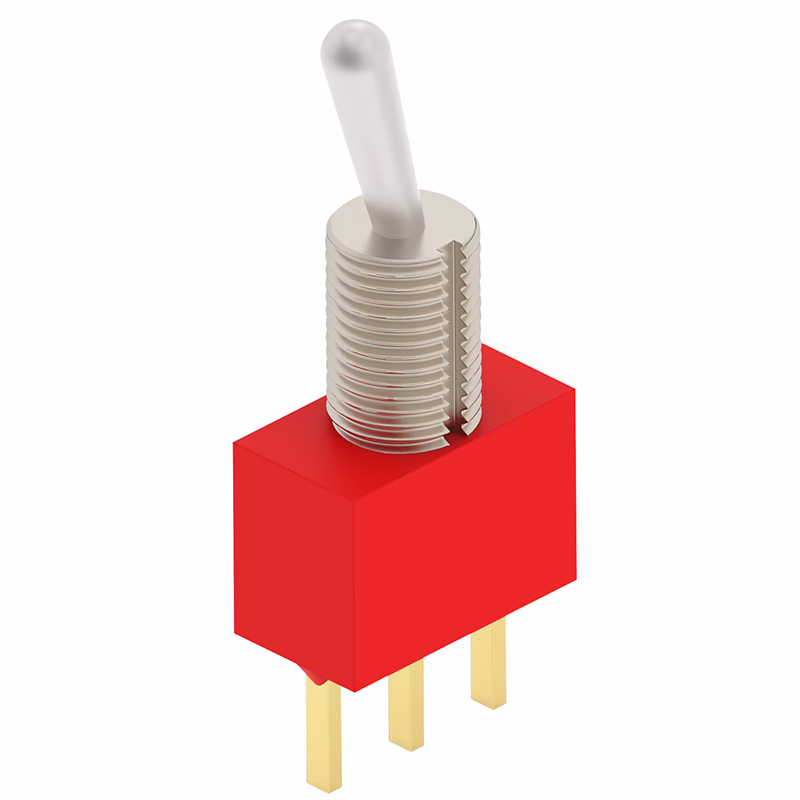

This Gemini A toggle switch (EDMO# 118251375) has a single pole - double throw configuration, an on-off-on operation, and is panel mounted.
Features
- Gold contacts
- Epoxy sealed terminals
- Stainless steel frame with brass tin plated solder support
- Hardware included
- RoHS compliant
Specifications
Toggle Length:
0.41 in (10.4 mm)
Bushing Length:
0.35 in
Bushing Style:
Threaded
Bushing Thread Size:
1/4-40
Configuration (Pole-Throw):
Single Pole - Double Throw
Operating Function:
On-Off-On
Switch Connection Type:
Printed Circuit
Sealed Device:
Yes
Toggle Style:
Baton Long
Switch Type:
Toggle
Dielectric Withstanding Voltage (Max):
1000 VAC
Insulation Resistance:
1000 MΩ
Contact Resistance:
10 mΩ
Contact Current Rating:
0.4 A
Operating Voltage:
20 VDC
Product Orientation:
Vertical
Contact Base Material:
Copper
Switch Contact Plating Material:
Gold
Process Sealed:
No
Product Codes
- Mfr Part No:1-1825137-5
- EDMO #:118251375
- Brand:TE CONNECTIVITY
