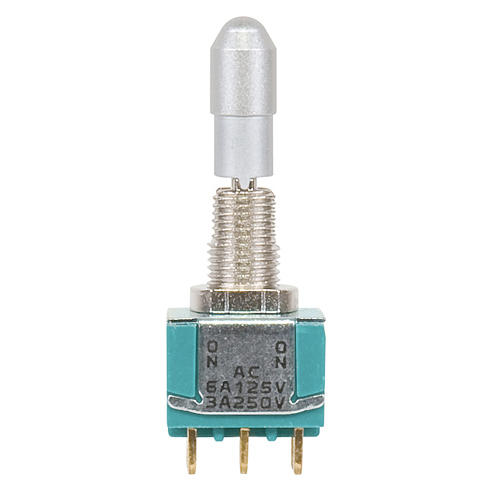

Green Series Toggle Switch | Locking, 4PDT, ON-ON

Green Series Toggle Switch | Locking, 4PDT, ON-ON

TE CONNECTIVITY

Call For Pricing
In stock
EDMO # 11571927-2
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The Green Series Toggle Switches have silver slugs with all contact surfaces gold flashed, this inhibits oxidation and also offers a very low initial contact resistance. The design also includes overmolded terminals which eliminate any voids with epoxy sealed terminals.

Version MTL-406N is a 4-pole, double-throw toggle switch. Positions: ON-ON with 3-position lever lock

Features

  • Wire lug, PC terminals
  • Threaded panel mount
  • Overmolded terminals
  • 10 mOhms maximum Initial contact resistance
  • 1,000 MOhms minimum insulation resistance
  • 1500VRMS at sea level Minimum dielectric strength
  • RoHS Compliant
  • Break-before-make contact timing

Also Purchased

Specifications

  • Bushing: 1/4-40 UNS-2A
  • Temperature Range: -4°F to +176°F (-20°C to +80°C)
  • Contact current max: 6A @ 125VAC 3A @ 250VAC 4A @ 28VDC
  • Contact Voltage AC: 115V nominal
  • Contact Voltage DC: 28V
  • Contact configuration: 4-pole, double-throw (4PDT)
  • Switch operation: ON-ON

Related Products

Product Codes

  • ECCN
    EAR99
  • ROHS
    YES
  • SCHEDULE B CODE
    8536.69.0000
