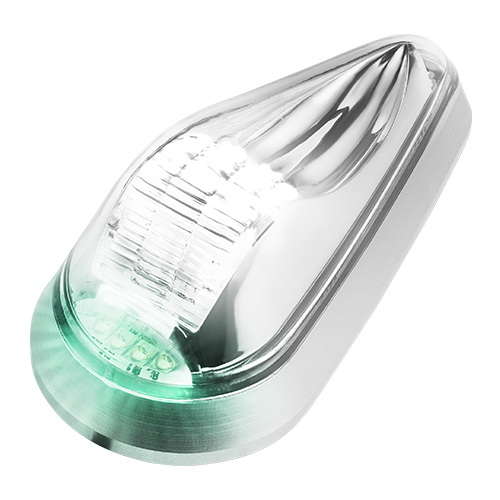

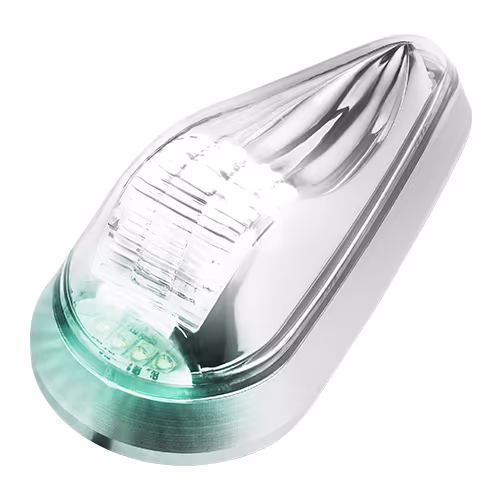

Pulsar 650 Series LED Forward Position & Anti-Collision Wingtip Light | Right Side, 14 V, Green
Product Description
The Pulsar 650 Series is a versatile two-in-one LED light designed for optimal performance and compliance. It functions as both a navigation light for directional red and green positioning and a strobe light for enhanced visibility during daylight and nighttime flights. With its aerodynamic, low-drag profile, industry-standard mounting footprint, and a patented three-position mounting bracket, the Pulsar 650 is an ideal replacement for legacy light installations.
Directional red and green LEDs provide clear wingtip orientation for safe, compliant operation. High-intensity white strobe dramatically enhances aircraft visibility in both day and night operations, aiding in recognition and collision avoidance.
This Pulsar 650 Series LED Forward Position & Anti-Collision Wingtip Light (EDMO# 111280B12R) is a 14-volt unit for the right side of the aircraft with green lighting.
Features
- Three-in-one navigation, strobe, and rear-facing position light
- Compatible with 14-volt and 28-volt systems
- Low power consumption, no external power supply required
- Standard mounting pattern with patented bracket
- High-efficiency, low-power LEDs
- Long-life, low-maintenance design
- Shock and vibration resistant
- Built-in thermal protection
- UV hard-coated polycarbonate lens
- Anodized aluminum base
- AeroLEDs' strobe synchronization
- Aerodynamic low-drag profile
Specifications
Weight:
3.8 oz
Dimensions:
4 x 1.9 x 1.5 in
Mounting:
KIT-0008 (Included)
Voltage:
9–15 VDC, 14 VDC (Nominal)
NAV/POS Current:
0.8 A @ 14 VDC
Strobe Current:
0.65 A at 14 VDC (Average), 4.9 A at 14 VDC (Peak)
Strobe Duration:
190mS (41FPM)
Position LED Color:
Green
Approvals:
FAA-TSOA/STC
Product Codes
- Mfr Part No:11-1280-B-12-R
- EDMO #:111280B12R
- Brand:WHELEN ENGINEERING
- Category:Aircraft Lighting
