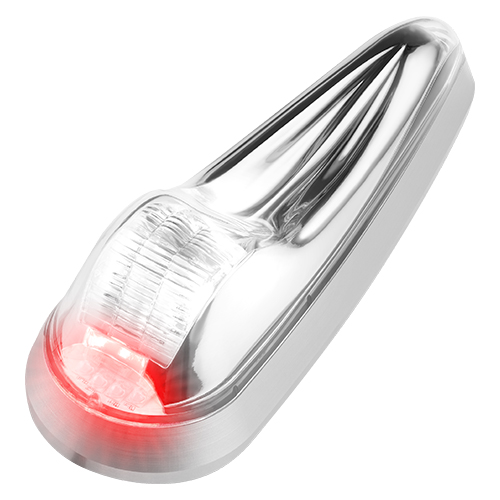

Pulsar 600 Series LED Forward & Tail Position/Anti-Collision Wingtip Light | Left Side, 28 V, Red
Product Description
The Pulsar 600 Series combines navigation, strobe, and rear-facing position lights in one compact unit. Featuring an aerodynamic design and standard mounting footprint, it’s ideal for replacing legacy lights. FAA-TSO/STC approved, it exceeds industry standards for performance and compliance.
Directional red and green LEDs provide clear wingtip orientation for safe, compliant operation. High-intensity white strobe dramatically enhances aircraft visibility in both day and night operations, aiding in recognition and collision avoidance. Aft-facing white light completes 360° coverage, improving visibility from all directions.
This Pulsar 600 Series LED Forward & Tail Position/Anti-Collision Wingtip Light (EDMO# 11110024L) is a 28-volt unit for the left side of the aircraft with red lighting.
Features
- Three-in-one navigation, strobe, and rear-facing position light
- Compatible with 14-volt and 28-volt systems
- Low power consumption, no external power supply required
- Standard mounting pattern with patented bracket
- High-efficiency, low-power LEDs
- Long-life, low-maintenance design
- Shock and vibration resistant
- Built-in thermal protection
- UV hard-coated polycarbonate lens
- Anodized aluminum base
- AeroLEDs' strobe synchronization
- Aerodynamic low-drag profile
Specifications
Weight:
4 oz
Dimensions:
5.6 x 1.9 x 1.4 in
Mounting:
KIT-0011 (Included)
Voltage:
18–30 VDC, 28 VDC (Nominal)
NAV/POS Current:
0.4 A @ 28 VDC
Strobe Current:
0.4 A at 28 VDC (Average), 3.15 A at 28 VDC (Peak)
Strobe Duration:
190mS (41FPM)
Position LED Color:
Red
Approvals:
FAA-TSOA/STC
Product Codes
- Mfr Part No:11-1100-24-L
- EDMO #:11110024L
- Brand:WHELEN ENGINEERING
- Category:Aircraft Lighting
