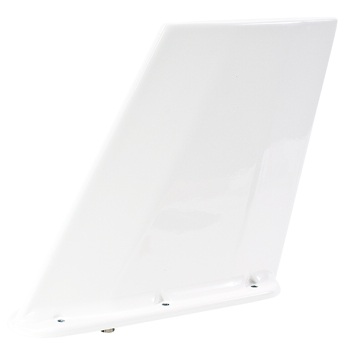

Tri-Band ELT Blade Antenna | 121.5, 243, 406MHz, Single Input

Tri-Band ELT Blade Antenna | 121.5, 243, 406MHz, Single Input

ACR ELECTRONICS / ARTEX

Call For Pricing
In stock
EDMO # 110-340
MFR Part # 110-340
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The 110-340 high-speed blade antenna is equipped with innovative Tri-Band technology, bringing the 121.5, 243, and 406 MHz frequencies into a compact package. The 110-340 offers a single connector for installations that require this configuration.

Features

  • 121.5, 243 and 406 MHz MHz frequencies
  • Designed for high-performance aircraft applications
  • Suitable for either top or bottom mounting
  • Solid polyurethane construction for strength, reliability and durability
  • BNC connector

Also Purchased

Specifications

  • Weight:
    1.4 lb
  • Height:
    7.75 in.
  • Frequency:
    121.5, 243 and 406 MHz
  • VSWR:
    2.0:1 - 121.5/243 MHz, 1.5:1 - 406 MHz
  • Polarization:
    Vertical
  • Radiation pattern:
    Omnidirectional
  • Impedence RF:
    50Ω
  • Power RF:
    50 watts
  • Material:
    Molded blade
  • Finish:
    Polyurethane enamel
  • Temperature:
    -55º to 85ºC
  • Altitude:
    55,000 ft
  • Connector:
    BNC female
  • Color:
    White

Related Products

Product Codes

  • Mfr Part No
    110-340
  • ECCN
    7A994
  • SCHEDULE B CODE
    8529.10.4000
  • TSO
    C126 This part is a subcomponent of an FAA TSO article.
