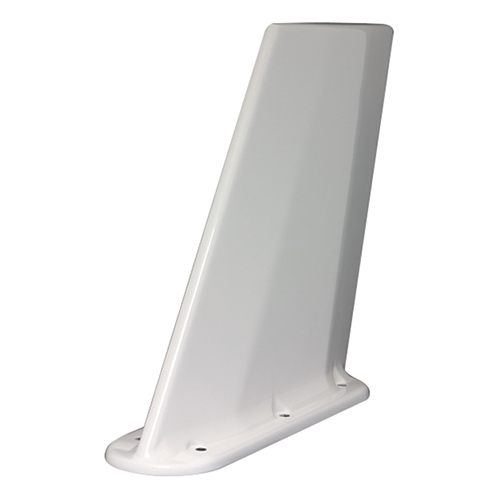

110-337-11 Tri-band ELT Blade Antenna | 121.5, 243 and 406 MHz, Dual Input
Product Description
This ELT antenna (EDMO# 110-337-11) is equipped with innovative Tri-Band technology, which brings the 121.5, 243, and 406 MHz frequencies into one compact package. This high-speed blade antenna offers two connectors for installations that require this particular set-up. Two secure bonding methods for attaching this antenna to your aircraft are available: screw mounting or base plate mounting. This product is designed to meet industry standards and compliant with TSOA C91a requirements and the Eurocae ED 62 flame test.
Features
- Tri-Band high speed blade antenna, bringing the 121.5, 243, and 406 MHz frequencies into a compact package
- Offers two connectors for installations that require this set-up
- Designed to meet TSOA C91a requirements, plus the Eurocae ED 62 flame test
- Offers two secure bonding methods for attaching the antenna to the aircraft: screw or base plate mounting
Specifications
Weight:
1.6 lb (Max)
Height:
7.85 in (Max)
Frequency:
121.5, 243, & 406 MHz
VSWR:
121.5 MHz: 2.0:1 (Max)
243 MHz: 2.0:1 (Max)
406 MHz: 1.5:1 (Max)
Polarization:
Vertical
Radiation Pattern:
Omnidirectional
Impedance RF:
50 Ω
Power RF:
50 W
Material:
Molded Blade
Finish:
Polyurethane White Paint
Connector:
BNC 121.5 & 243 MHz port, TNC 406 MHz port
Temperature:
-55ºC to 85ºC
Altitude:
50,000 ft
Product Codes
- Mfr Part No:110-337-11
- EDMO #:110-337-11
- Brand:ACR ELECTRONICS / ARTEX
- Category:ELTs & Accessories
