L-Band Blade Antenna | 950MHz — 1,220MHz, HN Connector, Single Port, 6-Hole Mount, Yellow
Product Description
The 10A1 L-band antenna is designed for airborne transmission and reception over 950 MHz — 1,220 Mhz frequency range. The 10A1 series antennas feature a HN female connector and have no probe.

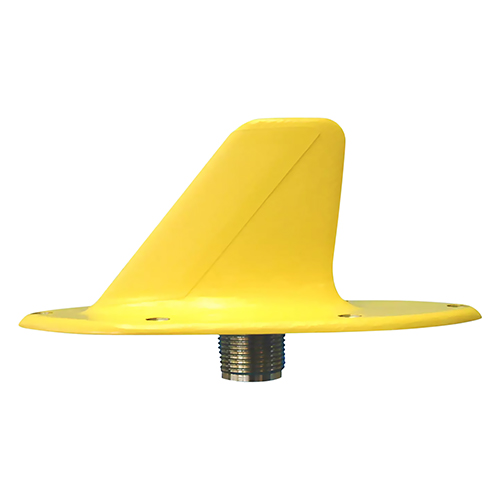

This L-band antenna (EDMO# 10A1) features a six-hole mounting footprint, a single port HN female connector, and a yellow finish.
Features
- 950MHz — 1,220MHz frequency response
- Yellow finish
- Single, HN female connector
- Six-hole mounting configuration
Specifications
Weight:
0.11 kg
Dimensions:
133 x 46 x 57 mm
Height Above Base Plate:
57 mm
Connector Type
HN
Frequency Range:
950MHz – 1,220MHz
Impedance:
50Ω
Return Loss VSWR:
<1.7:1 over 950MHz – 1,220MHz
Gain:
> -3 dB relative to resonant monopole
Polarization:
vertical
Radiation Pattern:
omnidirectional (azimuth)
Altitude:
50,000 ft
Temperature:
54°C to 135°C (operating)
Vibration:
BS 3G100 Pt 2 Sect 3:3.1 Region A. Cat 5.
Standards:
DO-160
Product Codes
- Mfr Part No:10A1
- EDMO #:10A1
- Brand:CHELTON
- Category:Antennas & Couplers
