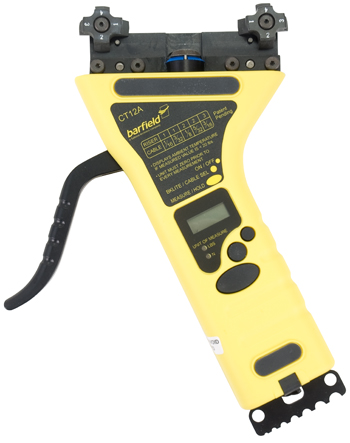

SINGLE CABLE TENSIOMETER/for use on cable size 1/4/50-1000 pounds/CT12A model
Product Description
The CT12A Digital Cable Tensiometer was designed to meet the industry’s requirements for testing and measuring the tension of aircraft cables. The CT12A displays the battery life, last measured cable size, ambient temperature and cable tension. Measurements are taken once the proper cable size is selected and when the tool is clamped onto the cable. The instrument’s display then shows the resulting measurement.
Version (EDMO# 102-03107) is compatible with 1/4 inch diameter single cable.
Features
- Meets new OEM specifications
- 10-year useful life span
- Rechargeable battery
- 4-character digital display
- Simple 3-button operation
- Cable gauge included
- No conversion table required
- Ten (10) minute automatic shutoff feature
- Ambient temperature reading
Specifications
Weight:
1.2 lb
Dimensions:
4.38 x 1.5 x 8.75 in.
Product Codes
- Mfr Part No:102-03107
- EDMO #:102-03107
- Brand:BARFIELD
- Category:Airframe/Powerplant Test Sets
