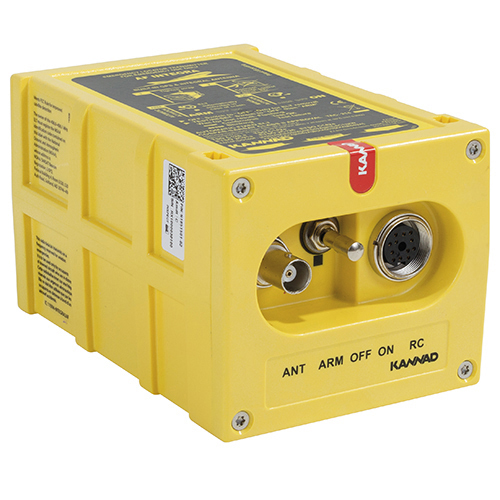

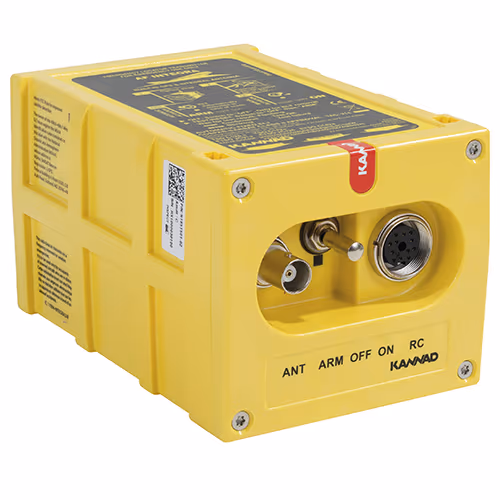

Ameri-Fit ELT Pack | AF-H

Ameri-Fit ELT Pack | AF-H

MCMURDO

CALL FOR PRICING
Available To Order
EDMO#1001628
MFR#1001628

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

The Ameri-Fit pack was created to help Ameri-King ELT owners comply with the FAA’s Airworthiness Directive, which became effective in late 2017 regarding the AK-450 and AK-451 models manufactured by Ameri-King. This pack is one complete kit including the Integra ELT, a remote control panel, a mounting bracket as well as various connectors to enable a quick and easy retrofit installation.

The Integra ELT comes with a 10-year manufacturer warranty, the longest period in the industry, ensuring pilots fly safely for a longer time. Moreover, it is equipped with a 406 MHz back-up antenna, which enables the ELT to transmit the 406 MHz distress signal independently from the aircraft — in the event the external antenna becomes broken or damaged. Its embedded GPS improves location accuracy to hundreds of meters, avoiding the cost of a GPS interface installation.

Features

This Ameri-Fit Pack (EDMO# 1001628) includes:

  • The Integra AF-H ELT
  • RC103 remote control panel
  • Adapter cable DIN12/RJ11, RJ11 coupler, and universal mounting bracket

Specifications

Weight (including batteries):
850g (1.873 lb) typical
875g (1.929 lb) max

Dimensions (installed with mount bracket):
175 x 99 x 88.4 mm (6.89 x 3.90 x 3.40 in)

Automatic fixed ELT with G-switch sensor

Two-frequency (121.5 and 406.037 MHz)

COSPAS-SARSAT class 2 (20°C to 55°C) or class 1 (-40°C to 55°C) ER type

RTCA DO-160/EUROCAE ED14 Environmental conditions

TSO/ETSO Approved
TSO-C126a, C142a, /ETSO 2C91a, 2C126, C142a

Operating Lifetime:
minimum operating duration at -20°C (class 2) or -40°C (class 1) is 24 hours on 406 MHz and over 48 hours on 121.5 MHz

Controls and Indicators:
ARM/OFF/ON switch, bright red LED, internal buzzer, outside buzzer option

Interfaces:
DIN12 socket for remote control panel (RCP) and pin programming dongle option, BNC antenna connector

Battery:
replacement interval every 6 years, accessories direct powered by ELT battery

Housing:
material: molded plastic
color: yellow (color compounded)

Product Codes

  • Mfr Part No:1001628
  • EDMO #:1001628
  • Brand:MCMURDO
  • Category:ELTs & Accessories
