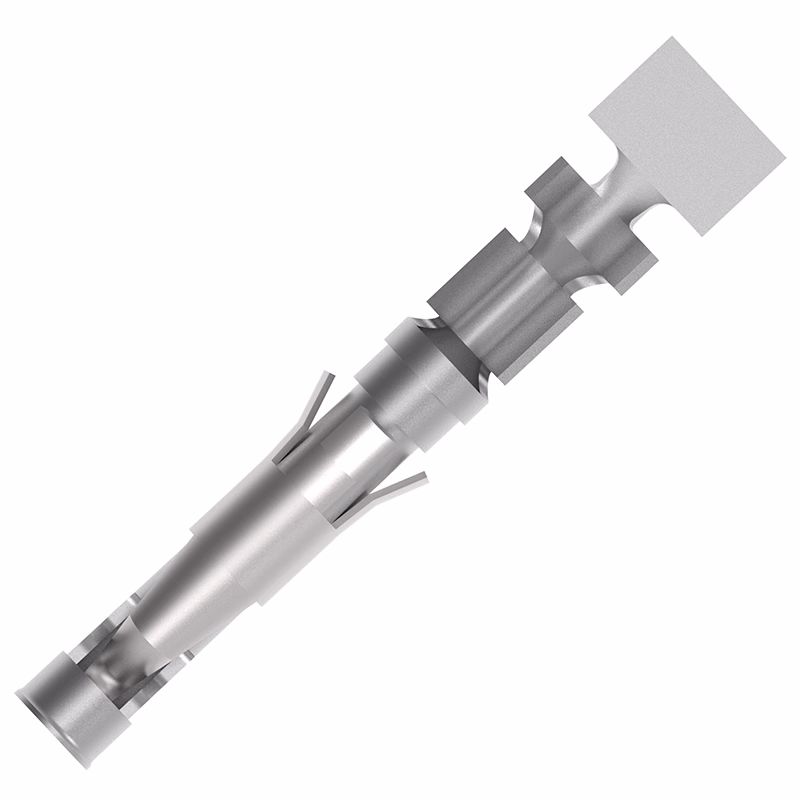

Multimate Type III+ Circular Contact Socket Assembly | 18—16 AWG, Tin-plated Brass

Multimate Type III+ Circular Contact Socket Assembly | 18—16 AWG, Tin-plated Brass

TE CONNECTIVITY

CALL FOR PRICING
Available To Order
EDMO#1-66101-9
MFR#1-66101-9

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

Multimate Type III+ socket connectors are used in several common size 16 circular connectors.

This socket contact (EDMO# 66101-9) features a gold-plated brass construction gold-plated brass [plating: 1.27µm tin per MIL-T-107272 over 0.76µm nickel per QQ-N-290]

Features

  • Accepted in circular connector shell types CPC Series 1, 4, 6; CPC Series 5015; & CMC Series 1, 4
  • Available in brass or phosphor bronze
  • Available with a gold & nickel or tin plated contact surface



Specifications

Connectors Type:
Multimate Type III+ Circular Contact Socket for standard circular connectors

Contact Type:
Socket (female)

Contact Material:
gold-plated brass [plating: 1.27µm tin per MIL-T-107272 over 0.76µm nickel per QQ-N-290]

Contact Size:
16

Wire Gauge:
18 AWG — 16 AWG

Current Rating:
13 A

Product Codes

  • Mfr Part No:1-66101-9
  • EDMO #:1-66101-9
  • Brand:TE CONNECTIVITY
  • Category:Electrical Interconnect
