Mate-N-Lok Panel Mount Connector Plug | 4-Position, 1-Row, Nylon

Mate-N-Lok Panel Mount Connector Plug | 4-Position, 1-Row, Nylon

TE CONNECTIVITY

Call For Pricing
A tariff fee of $0.1328 EA may apply.
In stock
EDMO # 1-480425-0
MFR Part # 1-480425-0
Need help placing an order? Call 800-235-3300 or Contact us

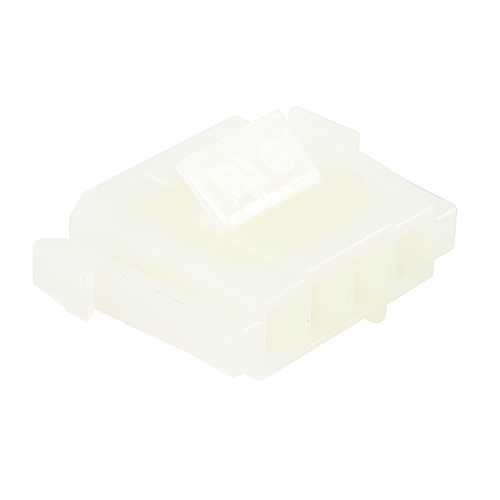

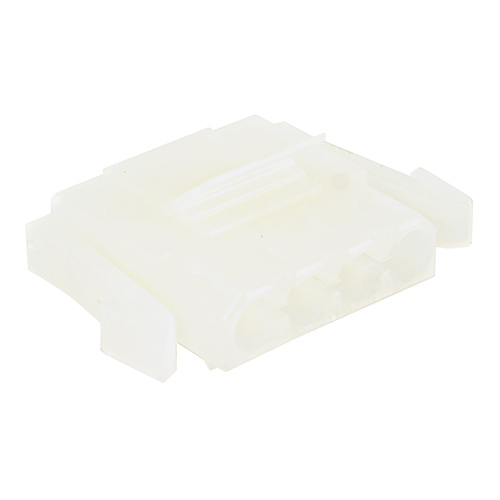

Product Description

Commercial Mate-N-Lok pin & Socket connector allows wire bundles and harness to interface with other wire bundle, panel connections, or PC board connections.

This Mate–N-Lok pin & socket housing connector (EDMO# 1-480425-0) features 4-pin connection and mates with Mate-N-Lok cap 480426.

Features

  • Mates with Connector cap 480426
  • 4-Pin and 1-row Mate-N-Lok receptacle
  • Available in either standard nylon or hi-temp nylon

Also Purchased

Specifications

  • Dimensions:
    1.025 x 0.85 x 0.31 in (26.04 x 21.59 x 7.87 mm)
  • Color:
    natural
  • Connector Type:
    mate-n-lok pin & socket connector socket
  • Housing Material:
    nylon
  • Mounting Style:
    panel
  • Number of Positions:
    4 position
  • Number of Rows:
    1 row
  • Pitch:
    5.08 mm
  • Termination Style:
    crimp
  • Voltage Rating:
    250V

Related Products

Product Codes

  • Mfr Part No
    1-480425-0
  • ECCN
    EAR99
  • SCHEDULE B CODE
    8536.90.4000
