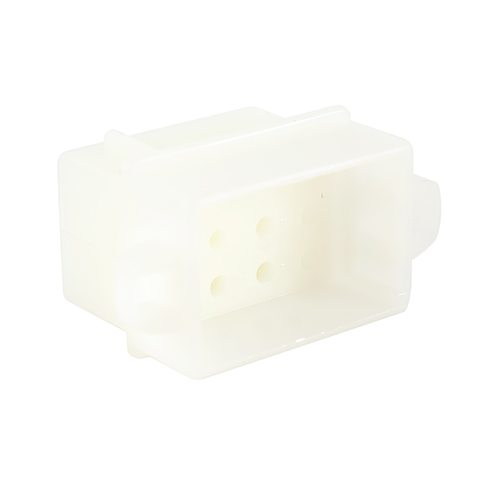

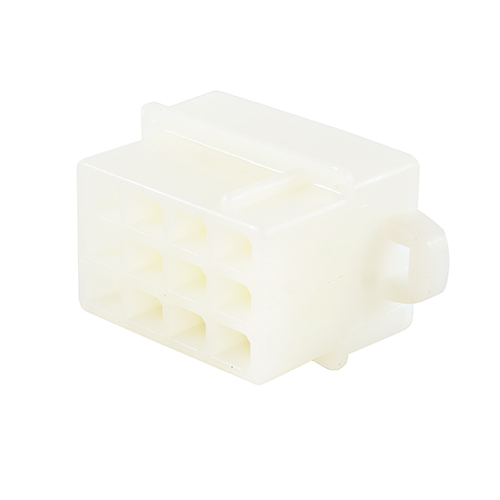

Mate-N-Lok Contact Pin Housing | 12-Position, 3-Row, Nylon, Panel Mount

1-480278-0

TE CONNECTIVITY

CALL FOR PRICING
In Stock
EDMO#1-480278-0
MFR#1-480278-0

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

Commercial Mate-N-Lok pin & Socket connectors allow wire bundles and harness to interface with other wire bundle, panel connections, or PC board connections.

This Mate–N-Lok pin & socket housing connector (EDMO# 1-480278-0) features a 12-pin connection and mates with commericial Mate-N-Lok socket contacts. To be used with pin housing 480275.

Features

  • Housing to be used with Mate-N-Lok pins
  • 12-Pin and 3-row Mate-N-Lok plug

Specifications

Dimensions:
21.59 x 26.67 x 23.62 mm

Color:
natural

Connector Type:
Mate-N-Lok pin & socket connector housing

Contact Type:
pin (male)

Housing Material:
nylon

Mounting Style:
panel

Number of Positions:
12 position

Number of Rows:
3 row

Pitch:
6.09 mm

Termination Style:
crimp

Voltage Rating:
250V

Product Codes

  • Mfr Part No:1-480278-0
  • EDMO #:1-480278-0
  • Brand:TE CONNECTIVITY
  • Category:Electrical Interconnect
