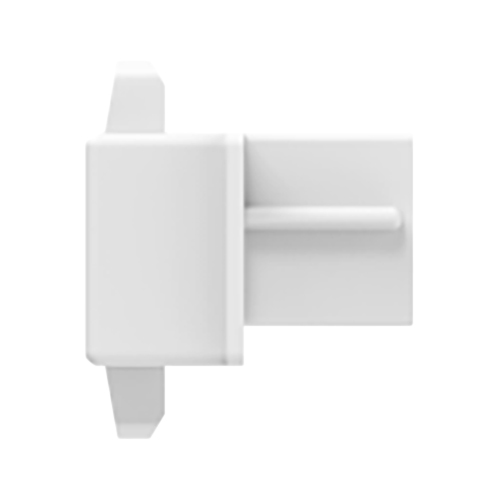

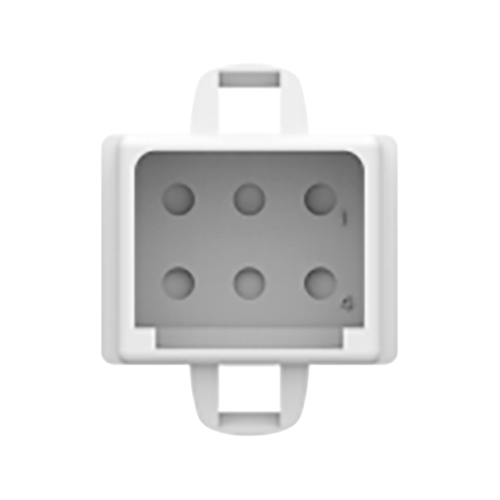

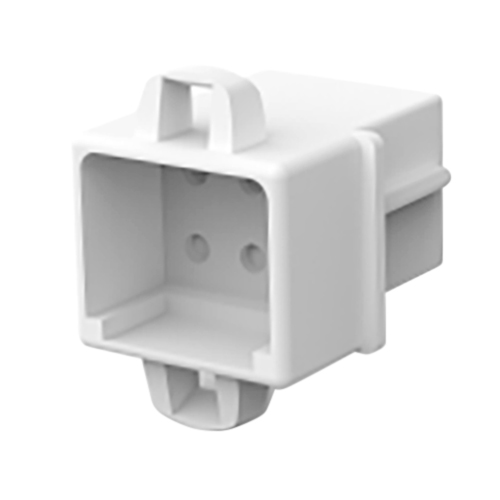

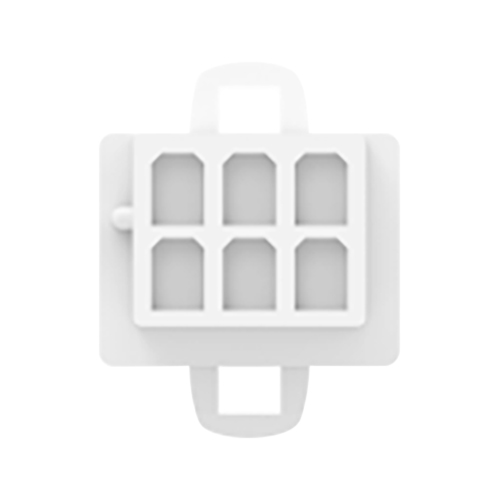

Commercial Mate-N-Lok Pin Housing | 6-Circuit
Product Description
Commercial Mate-N-Lok rectangular connectors allow wire bundles and harnesses to interface with other wire harnesses.
This Mate-N-Lok pin housing connector (EDMO# 1-480276-0) features 6-pin connections and mates with Mate-N-Lok 1-480273 socket housing.
Features
- Mates with 1-480273 Socket plug
- Features a 6-pin matrix style pin housing
- 6-position / 2-row configuration
- Positive lock
Specifications
Dimensions:
1.068 x 0.67 x 0.93 in (27.12 x 17.02 x 23.63 mm)
Number of Contacts:
supports up to 6 pins
Material:
Nylon, natural color
Voltage Rating:
250 V
Style:
Matrix
Housing Type:
pin housing with positive lock
Flammability Rating:
UL94V-2
Mates with:
Mate-N-Lok 1-480273
Product Codes
- Mfr Part No:1 4802760
- EDMO #:1-480276-0
- Brand:TE CONNECTIVITY
- Category:Electrical Interconnect
