Strato-Therm #8 Ring Terminal | 16 AWG, Green
Product Description
Strato-Therm terminals are designed for use in extreme temperature environments up to 1,200°F. These terminals. The design of the wire barrel resists vibration while allowing the wire to bend in any direction without damaging the insulation or conductor.

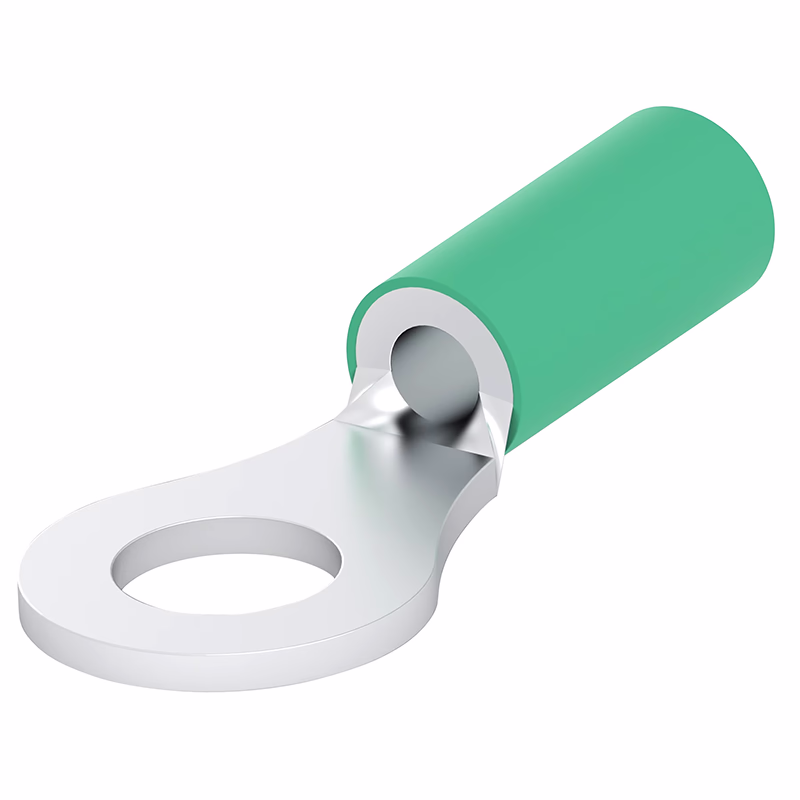

This ring terminal (EDMO# 1-321897-3) is green and has a #8 stud size, and used on 16 AWG wire.
Features
- Designed for high-temp installation up to 1,200°F (649°C)
- Nickel-plated conductor
- Exceeds requirements of SAE AS7928, Type II, Class 1 and 2
Specifications
Color:
green
Contact Material:
tin-plated copper
Insulation:
none installed
Mounting Style:
screw
Product Type:
ring terminal
Series:
Solistrand
Stud / Tab Size:
#8
Termination Style:
crimp
Wire Gauge:
16 AWG
Product Codes
- Mfr Part No:1-321897-3
- EDMO #:1-321897-3
- Brand:TE CONNECTIVITY
- Category:Electrical Interconnect
