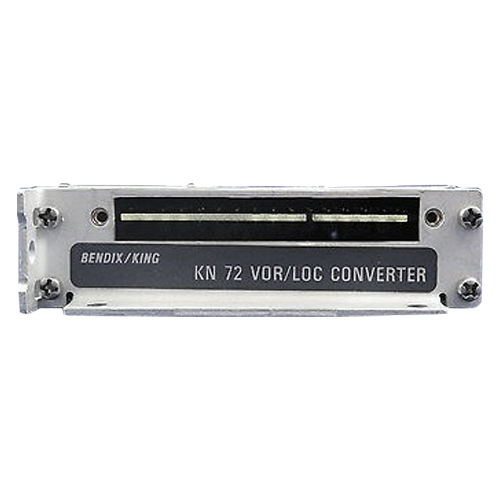

KN72 UNIV LOC/VOR CONVERTER
Product Description
The KN72 is a remote mounted VOR/LOC converter designed to operate with NAV receiver and VOR/LOC indicator to provide OMNI directional range or localizer information. Design features include improved VOR scalloping rejecting, versatile mounting, low power consumption, and externally adjustable VOR centering, localizer centering and course width.
Features
- For use with KN-53 NAV and KX-155 NAV/COMM
- Accepts three different VOR composite inputs - .5, .3, 3 VRMS
- Will provide DC voltages to drive ARINC type indicators
- 14 V or 28 V operation
- TSO'd
Specifications
Weight:
1.31 lb (0.6 kg)
Dimensions:
1.1 x 4.0 x 11.75 in (3 x 10.2 x 29.8 cm)
VOR Accuracy:
Bearing error of less than 1.0 deg. with precision track selector
LOC Accuracy:
Centering error of less than 3ua
Temperature Range:
-55°C to +71°C (operation)
Mounting:
Rigid, any position
Course Width (VOR):
150mV deflection for 10 deg. course error
Course Width (LOC):
90mV +-5mV deflection for .093ddm 4dB tone ratio
TSO (VOR):
FAA TSO C40a operation to 45,000 ft.; RTCA DO-114
TSO (LOC):
FAA TSO C36c Class D; RTCA DO-131
Product Codes
- Mfr Part No:066-04009-0000
- EDMO #:04009-0000
- Brand:BENDIXKING
- Category:Inverters & Converters
- ECCN:7E994
- SCHEDULE B CODE:8526.91.0010
- TSO:C36c, C40a
