TA17 VHF COM Antenna | 118—137 MHz, 4-bolt Mounting Base
Product Description

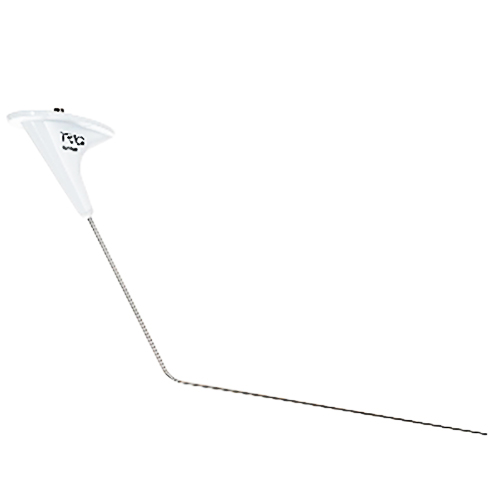

The TA17 is a certified VHF communication antenna designed for optimum performance with Trig radios. Trig's TA17 features a bent ""angled"" design for mounting on the bottom of the aircraft fuselage. Excellent electrical characteristics make the TA17 antenna ideal for a wide range of general aviation aircraft up to 350 mph and 50,000 feet. The low-profile mounting base uses a four-hole mounting pattern optimized for aerodynamic performance.
Features
- Bent ""angled"" design — ideal for mounting to the bottom of the aircraft
- Lightweight and aerodynamic design
- Designed to work with Trig VHF radios
- Ideal for most general aviation aircraft, including high performing, up to 350 mph and 50,000 feet
- Certified to FAA TSO C37d & C38d
- Solid, four-bolt mounting base
- Includes installation kit
Specifications
Weight:
8 oz (226 g)
Height:
9 in (228 mm)
Frequency Response:
118 MHz — 137 MHz
Impedance:
50Ω
VSWR:
3.0:1, maximum
Polarization:
Vertical
Connector Type:
BNC (female)
RF Power:
30 watts
Product Codes
- Mfr Part No:02452-00
- EDMO #:02452-00
- Brand:TRIG AVIONICS
- Category:Antennas & Couplers
