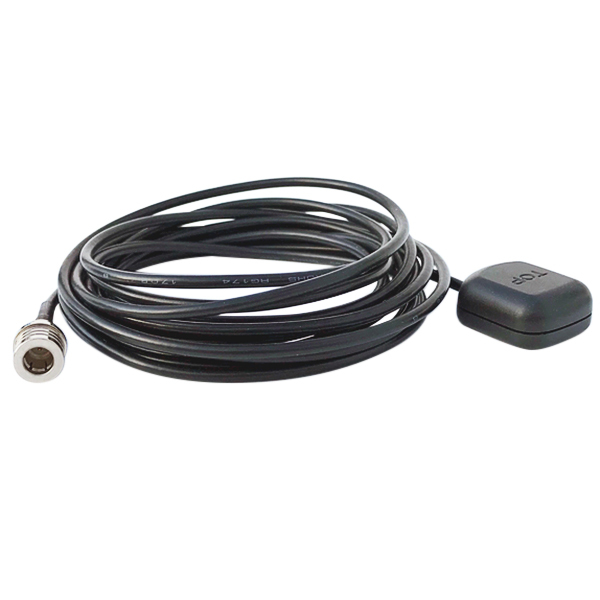

TA50 Compact GPS Antenna | 3m (118in) cable, QMA Connector

TA50 Compact GPS Antenna / 118 Inch Cable

TRIG AVIONICS

Call For Pricing

In stock

EDMO # 02172-00

MFR Part # 02172-00

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The TA50 Compact GPS Antenna is perfect for gliders and light sport aircraft with limited space and mounting options. This GPS antenna is compact and easy to stow, and it is designed to provide trouble-free operation when used with a TN72 GPS position source. Adding the TA50 to a TN72 is a cost-effective way to make a Trig Mode S transponder into an ADS-B Out solution for improved visibility and safety.

This TA50 compact antenna (EDMO# 02172-00) has an QMA connector and a three-meter length.

*Transponder and TN72 GPS sold separately

Features

Optimized to be used as a GPS position source
Lightweight and easy plug-in-play installation
Weatherproof
Can be paired with The TN72 GPS receivers from Trig
Meets FAR 91.227 when used with TN72
Complete with a secure and reliable QMA connector

Also Purchased

Specifications

Dimensions (GPS Unit without cable):

23 x 26 x 12 mm
Connector Type:

QMA (Part# 02172-00) Cable Length: 3 meter (118 in), (Part# 02172-00) Frequency: 1,575.42 ±3 MHz Antenna Gain: >1 dBiC VSWR: 1.5:1 Filtering: -20 dB, minimum, ±50 MHz Noise Figure: 1.5 dB, maximum Gain: 26 dB DC Power Requirements: 3 VDC — 5 VDC Temperature: -40°C to 85°C
