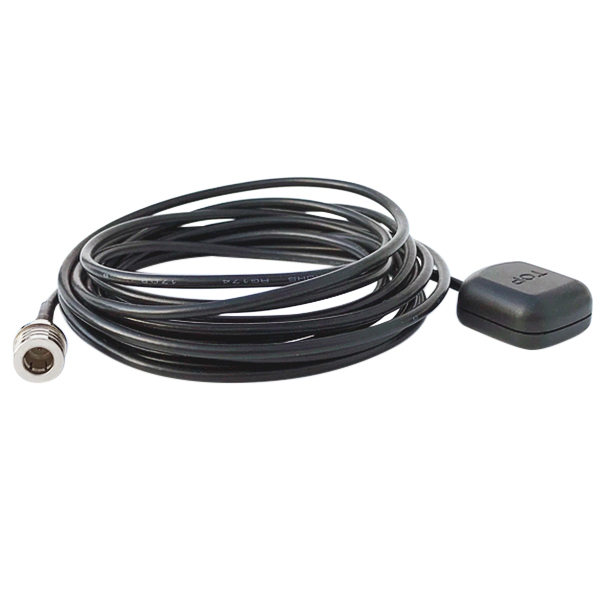

TA50 Compact GPS Antenna | 1m (39 in) Cable, QMA Connector
Product Description
The TA50 Compact GPS Antenna is perfect for gliders and light sport aircraft with limited space and mounting options. This GPS antenna is compact and easy to stow, and it is designed to provide trouble-free operation when used with a TN72 GPS position source. Adding the TA50 to a TN72 is a cost-effective way to make a Trig Mode S transponder into an ADS-B Out solution for improved visibility and safety.
This TA50 compact antenna (EDMO# 02171-00) has an QMA connector and a one-meter length.
*Transponder and TN72 GPS sold separately
Features
- Optimized to be used as a GPS position source
- Lightweight and easy plug-in-play installation
- Weatherproof
- Can be paired with The TN72 GPS receivers from Trig
- Meets FAR 91.227 when used with TN72
- Complete with a secure and reliable QMA connector
Specifications
Dimensions (GPS Unit without cable):
23 x 26 x 12 mm
Connector Type:
QMA (Part# 02171-00)
Cable Length:
1 meter (39 in), (Part# 02171-00)
Frequency:
1,575.42 ±3 MHz
Antenna Gain:
>1 dBiC
VSWR:
1.5:1
Filtering:
-20 dB, minimum, ±50 MHz
Noise Figure:
1.5 dB, maximum
Gain:
26 dB
DC Power Requirements:
3 VDC — 5 VDC
Temperature:
-40°C to 85°C
Product Codes
- Mfr Part No:02171-00
- EDMO #:02171-00
- Brand:TRIG AVIONICS
- Category:Antennas & Couplers
- ECCN:7A994
- SCHEDULE B CODE:8526.10.0010
