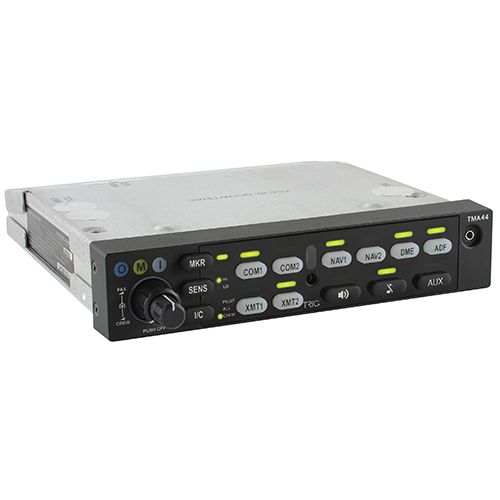

TMA44 Standard Audio Panel

Product Description

The TMA44 is equipped for navigation and IFR flight, with switched inputs for; Nav 1, Nav 2, ADF, Aux and DME. An illuminated marker beacon for ILS approaches adds visual cues to marker audio tones. All switchgear has a positive feel, with adjustable panel illumination for a great user experience day or night.

 The TMA44 has two additional unswitched inputs included for audio alerts, such as stall or undercarriage warnings. The option of playing music via two custom inputs is enhanced by the TMA44’s ‘smooth fade’ feature. This automatically adjusts music levels to ensure vital radio information is always clearly received.

Specifications

• Weight:
  1.3 lb
• Dimensions:
  6.2 x 1.3 x 7.77 in
• Audio Panel:
  2 to 4 seats
• Switch Inputs:
  Nav1, Nav2, ADF, AUX, DME
• Unswitched Inputs (audio warnings):
  2
• Adjustable Illumination:
  Photocell and/or via lighting bus
• Mic frequency response (3 dB):
  350 Hz to 6 kHz
• Music frequency response (3 dB):
  200 Hz to 15 kHz
• Headphone impedance:
  150Ω to 1,000Ω
• Headphone output (each headset):
  45 mW
• Speaker output:
  3 watts @ 14 VDC, 10 watts @ 28 VDC
• Supply voltage:
  11 to 33 VDC
• Operating Temperature:
  -20°C to 55°C
• Storage Temperature:
  -40°C to 85°C
• TSO Compliance:
  TSO-C50c, TSO-C35d

Product Codes

• Mfr Part No
  01801-00-01
• ECCN
  7A994
• SCHEDULE B CODE
  8518.40.2000
