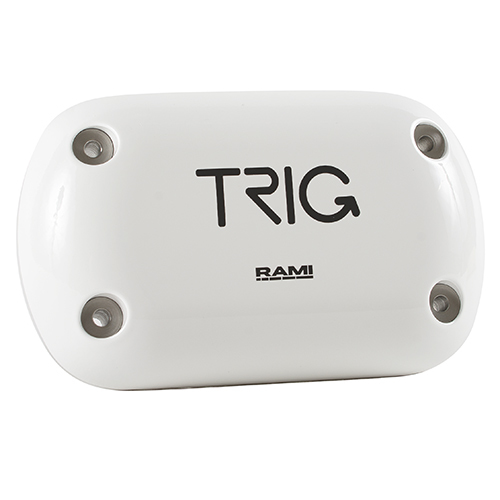

TA70 Certified GPS Antenna

Product Description

The TA70 GPS antenna has been produced in conjunction with Trig Avionic's partner, RAMI, to ensure optimum performance with all Trig GPS position source products. The TA70 provides a fully certified TSO C190 antenna that is compatible with proven Trig transponders, and supported by the free ADS-B STC program. It is fully compliant with FAA 2020 ADS-B requirements and can be paired with either the TN70 or TN72 GPS receivers.

Specifications

• Weight:
  0.31 lb
• Dimensions:
  1.59 x 2.87 x 4.71 in
• Type:
  WAAS GPS Antenna
• Supply voltage (DC):
  4.5 VDC – 14.5 VDC
• Typical consumption (at 14v):
  40 mA (typical), 60 mA (maximum)
• Certification:
  TS0-C190
• Compliance:
  DO-301, DO-160G

Product Codes

• Mfr Part No
  01740-00
• ECCN
  7a994
• SCHEDULE B CODE
  8529.10.4000
• TSO
  TSO C190

Documentation

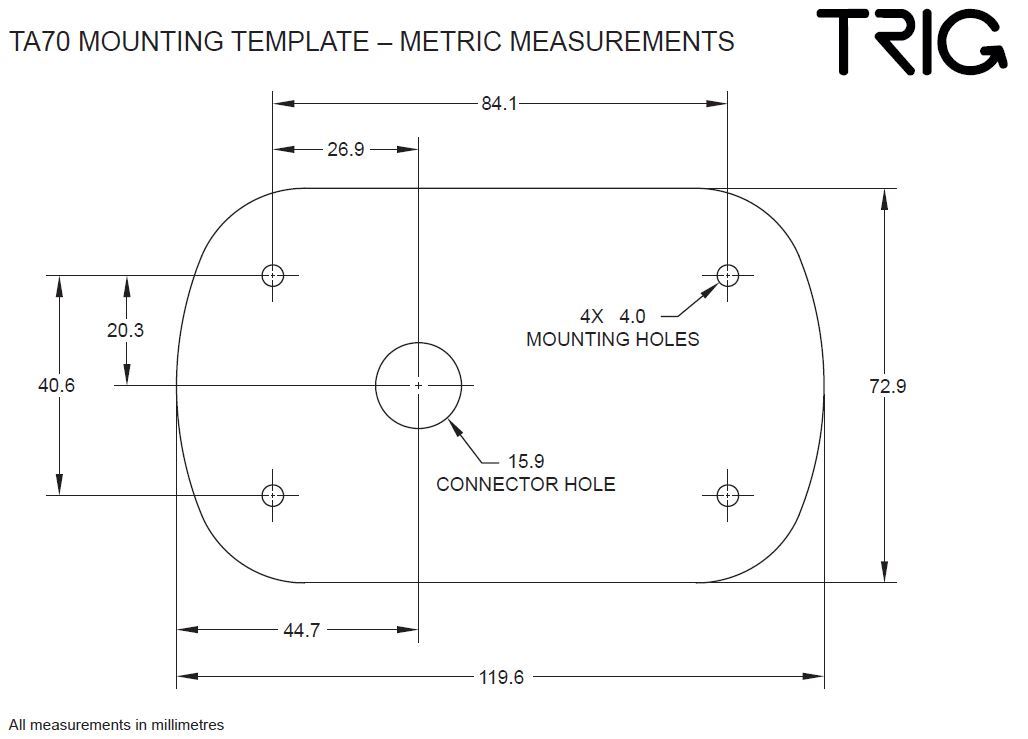

• TA70 Mounting Template
• TA70 Installation Manual
