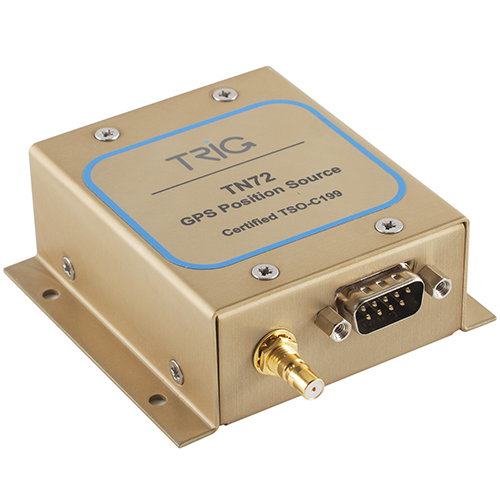

TN72 GPS Position Source Receiver

TRIG AVIONICS

Call For Pricing

In stock

EDMO # 01685-00

MFR Part # 01685-00-01

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The highly affordable TN72 GPS Position Source is the best way for light-sport, experimental, and home-built aircraft to meet the 2020 ADS-B mandate. When used in combination with a TT22 transponder (sold separately), the TN72 meets FAR 91.227 to allow flight in 2020 rule airspace. When flying in busy skies, adding a TN72 will reduce the risk of collision and improve flight safety. Also, it will trigger a full traffic service from ADS-B ground stations when ADS-B In is used.

Features

Simple ADS-B Out upgrade to Trig transponders
Suitable for experimental, light-sport, and home-built aircraft
Ideal for experimental gliders — allowing flight in 2020 rule airspace
Enables live tracking of aircraft with suitable ADS-B In equipment
Triggers traffic information services (TIS-B only available in U.S.)
Two year warranty from date of install, U.S. based technical support

Also Purchased

Specifications

Weight:

3.8 oz

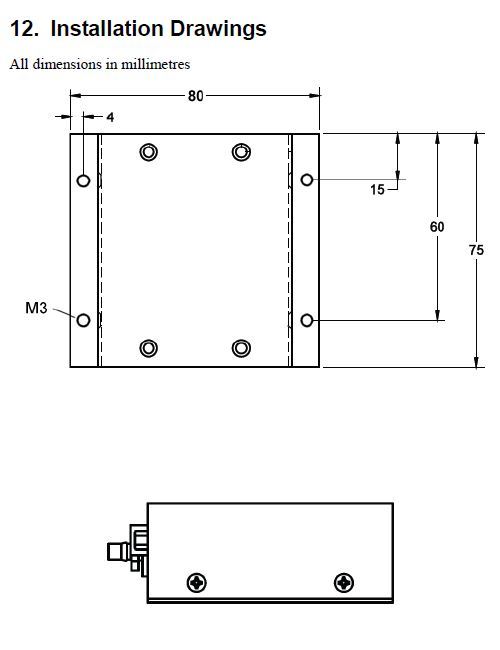

Dimensions:

1.2 x 3.6 x 2.5 in
Type:

TABS GNSS
Supply Voltage:

11 VDC – 33 VDC
Typical Current Consumption:

0.1 amp @ 14 volts
Operating Temperature:

-40°C to 70°C
Connector:

GPS (power, ground and GPS data): nine-way, D-type Antenna: 5-volt phantom power, QMA male
Certification:

TSO-C199 Class B
Compliance:

DO-160G
