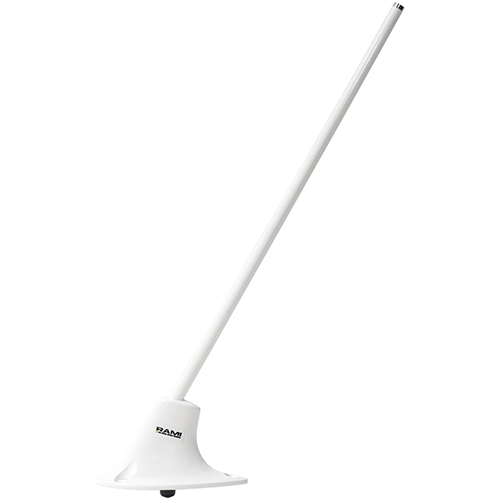

AV-300 ELT Rod Antenna | 121.5 MHz, 243 MHz, & 406 MHz | For Kannad ELTs
Product Description
The AV-300 ELT antenna is intended for use with a 406 MHz ELT (Emergency Locator Transmitter) for General Aviation. It is a passive three frequency fiberglass rod whip antenna, designed for low-speed aircraft (up to 350 knots). It has met DO-160G, Section 8, Category U requirements for robust vibration, and is qualified for installation on helicopters with unknown rotor frequencies.
This AV-300 ELT antenna (EDMO# 0146151) is designed to be used with all Kannad ELTs.
Features
121.5 MHz, 243 MHz, and 406 MHz frequencies
Vertical polarization
Omni-directional pattern
BNC female connector
White finish
For use with Kannad ELTs
Specifications
Weight:
9 oz
Height:
14 in
Frequency:
121.5 MHz, 243 MHz, & 406 MHz
Impedance:
50Ω
VSWR:
121.5 MHz & 243 MHz: 2:1, max.
406 MHz: 1.5:1, max.
Polarization:
Vertical
Pattern:
Omni-directional
Connector:
BNC (female)
RF Power:
10 watts CW
Approvals:
TSO-C126a
Product Codes
- Mfr Part No:0146151
- EDMO #:0146151
- Brand:MCMURDO
- Category:ELTs & Accessories
- ECCN:7A994
- SCHEDULE B CODE:8529.10.4000
