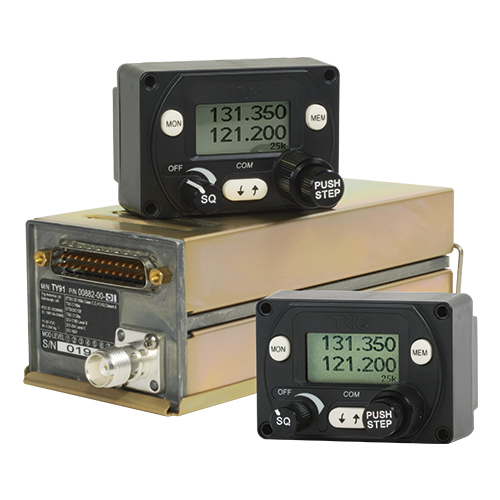

TY92 VHF Transceiver | Dual Control
Product Description
Designed for GA and light sport aircraft, Trig Avionics' TY91 and TY92 are certified 25 kHz/8.33 kHz VHF radios that are compact and lightweight—making them ideal for panels with limited space. Both standard units consist of a radio hardware unit and a control head that can be mounted in a standard 2.25 inches round hole. In addition, Trig offers a Dual Control Kit version for both the TY91 or TY92 that allows two radio controllers to integrate with a single Trig radio hardware box; this configuration is ideal for training and flight school use. Users can choose from one of two power output options depending on their needs; the TY91 has a power output of 6 watts and the TY92 has a power output of 16 watts to accommodate longer-range transmissions.
This TY92 (EDMO# 01452-00) has a higher power output of 16 watts which is suitable for longer range transmission and require a 28V power supply and features a Dual Control Kit that allows two radio controllers to integrate with a single Trig radio hardware box; this configuration is ideal for training and flight school use.
Features
- Provides more installation options while saving space with a control head and separate radio hardware
- Certified for 25 kHz and 8.33 kHz VHF transceiver
- Requires minimal space and weight—can be mounted in a 2.25-inch round hole or in a smaller compact mount; when installed, the control head is only 3-inches deep, meaning it can be installed in a panel where a single radio box doesn't fit
- Equipped with 9 programmable memories and a dual watch function that allows users to monitor standby frequency
- Perfect partner for Trig's TT21 and TT22 Mode S transponders
- Approved for fitting to European and FAA-registered aircraft
- Includes a built-in speaker amplifier and two place intercom
- Easily operable with gloves
Specifications
Weight:
460 grams
Dimensions:
Controller: 44 x 63 x 35 mm
Radio Unit: 48 x 66 x 160 mm
Cooling Requirement:
No fan required
Operating Temperature:
Controller; -20°C to 70°C
Radio unit; -40°C to 70°C
Type:
8.33 kHz/25 kHz transceiver
Receiver:
Class C, Class E
Transmitter:
Class 3, Class 5
Supply Voltage:
22 to 33 VDC
Typical Current:
130 mA, receive
Consumption:
2.5 A, transmit @ 28V
Nominal Transmitter Power:
16 watts
Certification:
ETSO-2C169a, ETSO-2C128, TSO-C169a, TSO-C128a
Compliance:
ED-23C, ED-67, DO-186B, DO-178B Level B, DO-160F, DO-254 Level C
Product Codes
- Mfr Part No:01452-00
- EDMO #:01452-00
- Brand:TRIG AVIONICS
- Category:Airband Communications
