COMM TRANCEIVER/8.33KHZ, CNI5000 5V
Product Description

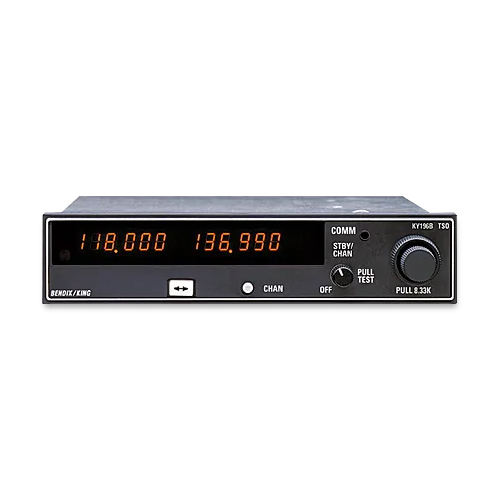

The KY 196B VHF communications transceiver meets the ICAO EUR Region's 8.33-kHz channel spacing requirements. It also has 25 kHz channeling for the U.S. Offering a display range of 118.000 MHz to 136.990 MHz, and providing a total of 2,280 channels in Europe and 760 in the U.S. For European use, the KY 196B also has FM immune compliance for ICAO Annex 10.
Version 064-01084-0201 is for the CNI5000 and designed for mounting without faceplate.
Features
- Solid state panel mount
- Digitally displays active and standby frequencies
- Flip-flop frequency transfer to easily switch the active and standby frequencies
- Non-volatile memory (batteries not needed to store frequencies)
- 9 pilot-programmable channels
- Audio leveling
Specifications
Weight:
2.8 lb (1.27 kg)
Dimensions:
6.31 x 1.35 x 10.78 in (16.03 x 3.43 x 27.37 cm)
Power Requirement:
28 VDC @ 1A (receive), 6A (transmit)
Frequency Range:
118.000 MHz to 136.9916 MHz in 8.33 kHz increments
Temperature:
-20°C to 55°C, rated
Duty Cycle:
1 minute on, 4 minutes off
Output Rating:
16 watt, minimum
TSO:
Transmitter: C37c, Class 3, 4 & 5
Receiver: C38c, Class A
Product Codes
- Mfr Part No:064-01084-0201
- EDMO #:01084-0201
- Brand:BENDIXKING
- Category:Flight Systems
- SCHEDULE B CODE:8525.60.1055
- STC:STC
- TSO:C37c, C38c
