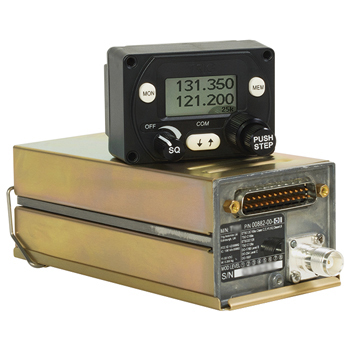

TY92 VHF Compact Radio Transceiver | 16-Watt, Complete Kit

TRIG AVIONICS

Call For Pricing

In stock

EDMO # 01080-00

MFR Part # 01080-00

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The compact TY92 Transceiver is a 16-watt radio ideal for saving space that can be installed in tight panel spaces. The TY92 meets EASA ETSO and FAA TSO certifications. It is easy to use, faster to tune, and requires minimal depth with less weight. The ‘Push Step’ feature provides the fast channel selection between 8.33 kHz to 25 kHz. Dual Watch allows pilots to monitor two channels simultaneously. The radio's built-in intercom provides great control with various adjustments including mic gain for each headset. A bright and crisp display remains visible during all lighting conditions.

Features

Includes:
Radio control head
Hardware unit
Mounting tray
Install kit
Installation manuals
Features:
16 watt transmitter power
Compact size, low weight and requires minimal panel space
Built-in two place intercom
‘Push Step’ knob allows fast switching from 8.33 kHz and 25 kHz or can be set to 25 kHz or 50 kHz steps
Dual watch function monitors two frequencies simultaneously
Manual dimming feature with adjustable backlight
Dual Control – two controller option for tandem cockpits
Simple Installation
GPS / EFIS compatibility (includes SL40 protocol and Garmin GTR255)
Two year warranty from date of install, U.S. based technical support

Also Purchased

Specifications

Weight:

1.01 lb
Dimensions:

Controller: 1.73 x 2.48 x 1.37 in Radio unit: 1.88 x 2.59 x 6.29 in
Type:

Receiver: Class C, Class E Transmitter: Class 3, Class 5
Supply Voltage:

22 VDC – 33 VDC
Typical Current Consumption (@ 28 VDC):

Receive: 130 mA Transmit: 2.5A
Operating Temperature:

Radio unit: -40°C to 70°C Controller: -20°C to 70°C
Nominal Transmitter Power:

16 Watt
Certification:

ETSO-2C169a, ETSO-2C128, TSO-C169a, TSO-C128a
Compliance:

ETSO-2C169a, ETSO-2C128, TSO-C169a, TSO-C128a
