TY91 VHF Transceiver | Remote Unit with Mounting Tray
Product Description
Designed for GA and light sport aircraft, the TY91 and TY92 are certified 25 kHz/8.33 kHz VHF radios that are compact and lightweight — making them ideal for panels with limited space. Users can choose from one of two power output options. The TY91 has a power output of 6 watts and the TY92 has a power output of 16 watts to accommodate longer-range transmissions. The TY91 is designed for light sport, ultra light, glider and balloon pilots with a lower 6 watt power requirement and is ideal for most general aviation users.

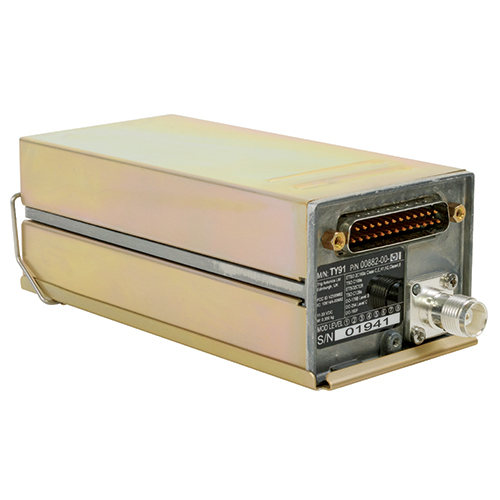

This TY91 transceiver (EDMO# 00883-00) includes the remote unit and mounting tray without the control unit.
Features
- Compact and lightweight offers flexible installation options
- 8.33 and 25 kHz channel spacing
- Push Step feature provides fast frequency selection
- Monitor two frequencies at the same time with the dual watch function
- Manual dimming feature
- Dual controller option allows for two controllers to used in aircrafts with tandom conpits
- Low power consumption
- 6 watts nominal output
- Simple installation
- EASA ETSO and FAA TSO certification
Specifications
Weight:
460 grams
Dimensions:
44 x 63 x 35 mm (controller)
48 x 66 x 160 mm (radio unit)
Cooling Requirement:
No fan required
Operating Temperature:
-20°C to 70°C (controller)
-40°C to 70°C (radio unit)
Channel Spacing:
8.33 kHz / 25 kHz transceiver
Receiver:
Class C, Class E (TY91)
Class C, Class E (TY92)
Transmitter:
Class 4, Class 6 / 6 watt (TY91)
Class 3, Class 5 / 16 watt (TY92)
Supply Voltage:
11-33 VDC (TY91)
22-33 VDC (TY92)
Typical Current:
200 mA receive (TY91)
130 mA receive (TY92)
Consumption:
2A transmit @ 14V (TY91)
2.5A transmit @ 28V (TY92)
Nominal Transmitter Power:
6W (TY91)
16W (TY92)
Certification:
ETSO-2C169a, ETSO-2C128, TSO-C169a, TSO-C128a
Compliance:
ED-23C, ED-67, DO-186B, DO-178B Level B, DO-160F, DO-254 Level C
Product Codes
- Mfr Part No:00883-00-01
- EDMO #:00883-00
- Brand:TRIG AVIONICS
- Category:Airband Communications
- ECCN:7A994
- ETSO:2C169a, 2C128
- SCHEDULE B CODE:8526.10.0010
- TSO:C169a, C128a
