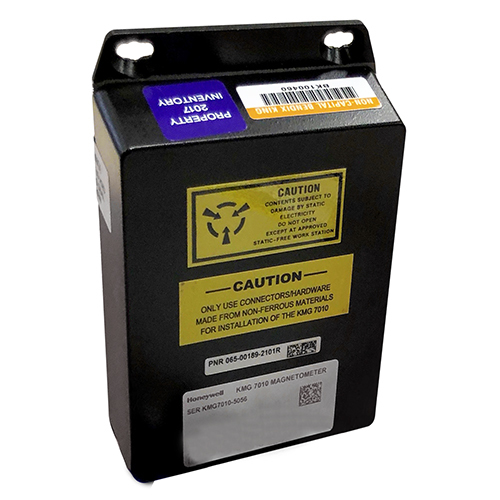

KMG 7010: MAGNETOMETER
Product Description
The KMG 7010 Magnetometer detects the Earth's magnetic field and sends measurements via a CAN Bus interface to the flight computer where the data is used for long-term heading output stabilization.
Features
No product features currently available.
Specifications
Weight:
0.9 lb (0.41 kg)
Dimensions:
3.7 x 5.83 x 1.33 in (93.98 x 148.98 x 37.78 mm)
Temperature:
-55°C to 70°C
Altitude:
55,000 ft
Operation Voltage:
9 – 30.3 VDC
Current Draw (at 27.5 VDC):
80 mA (nominal), 25°C, after 2 minute warmup
200 mA (nominal), -55°C, after 2 minute warmup
700 mA (maximum), -55°C
Circuit Breaker:
1A for 28 VDC
2A for 14 VDC
Signals (input & output):
Serial CAN bus
Cooling:
convection cooled (no fan)
Connector:
9-pin female
Product Codes
- Mfr Part No:065-00189-0101
- EDMO #:00189-0101
- Brand:BENDIXKING
- Category:Flight Systems
- ECCN:7E994
- ETSO:C6d
- PROAPP:PT1354NM
- SCHEDULE B CODE:9015.80.80
- TSO:C6d
