RT-7000 TACTICAL RADIO
RT-7000 TACTICAL RADIO

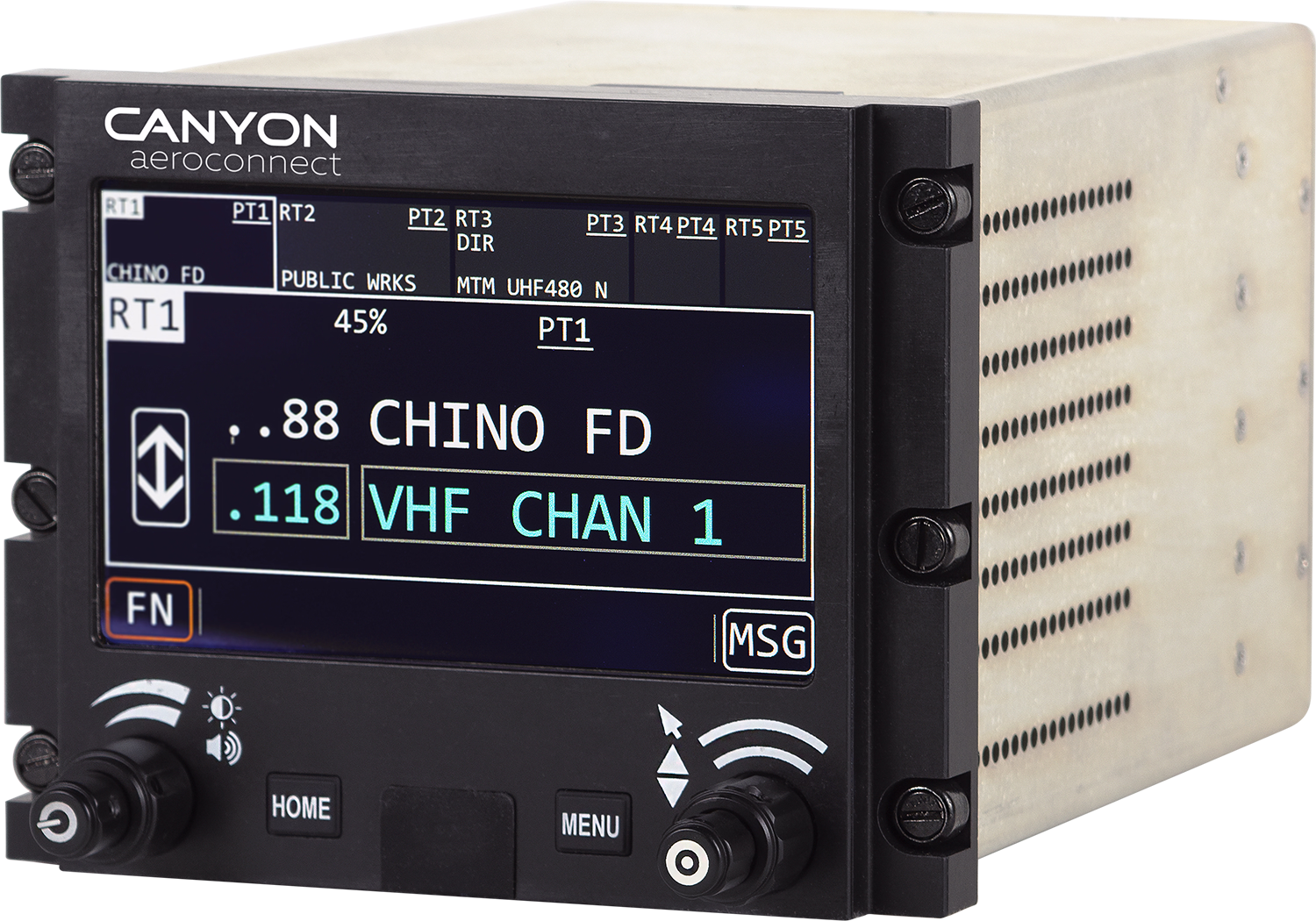

The RT-7000 Panel Mount Tactical Radio satisfies all public safety and para-public voice communications needs. This unit supports 29.7 MHz to 960 MHz communications with up to three embedded and individual channels, thus providing the equivalent of three individual radios with the ability to support up to two external handheld radios. The RT-7000 provides P-25 Phase 1 and 2 digital modulations across the entire range. With the addition of up to two modules, it can also cover VHF, UHF, and 700/800 MHz public safety bands including trunking and Motorola-proprietary radio network features.
The RT-7000 is a software-defined device which can easily be upgraded to meet evolving requirements for software and hardware without replacing the radio. This unit is equipped with an integrated audio and radio control display. All audio and radio functions can be controlled using either the touchscreen display or the dual concentric front panel knobs.
Features:
Trunking: P25 Phase 1 & 2, SmartZone, SmartNet, OmniLink
P25 OTAR
Multi-key FIPS-140-2 encryption
Three embedded internal radio modules can be any combination of:
Canyon wideband transceiver modules: 29.7–960 MHz AM/FM, P25 conventional
Motorola APX-8000 modules
SAR (Search and Rescue) module
Easy, embedded relay/simulcast across two to five transceivers or receiver/transmitters
Programmable scan groups
Programmable quick access preset channels
ATC Communications (TSO)
Color LCD display with programmable day/night backlighting
MIL STD 3009 NVIS Green B-compliant
Customizable GUI
Flight tunable
Touch-screen or knob/button command
Flight glove-compatible
Industry-best display readability at-a-glance
The RT-7000 is available in many configurations, request a quote below or contact (sales@edmo.com, 800-235-3300) to best suit your application.

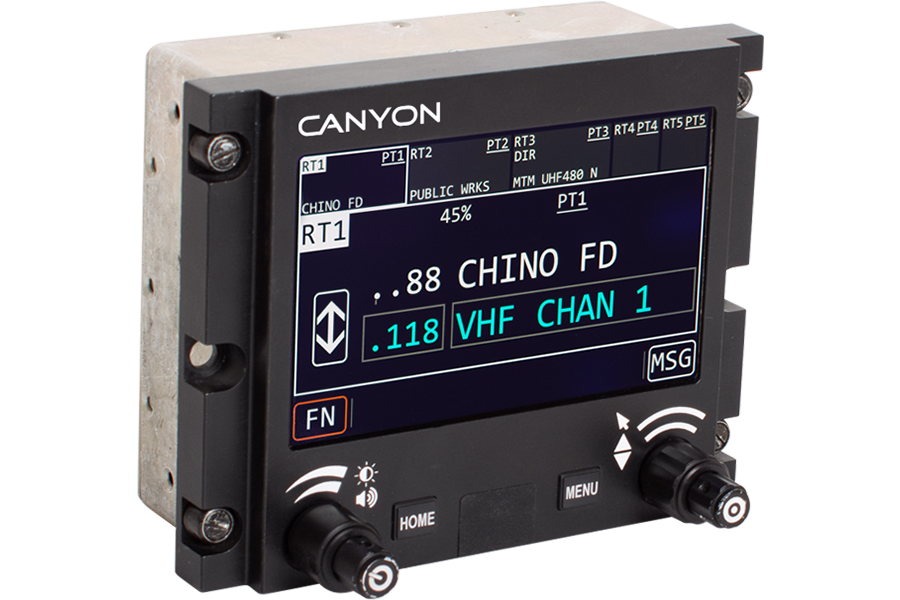

Remote Control Display Unit (RCDU)
The RT-7000RCDU, a fully-functional display without transceivers, connects to an RT- 7000RMR and replicates the panel-mount radio display in every way. It also can become a remote control display head for the RT-7000PMR, allowing radio control in a second position in the aircraft.
Delivers instantaneous operation with no delay
Customizable user interface
Designed for Emergency Medical Technicians (EMT), rear seat-position Airborne Law Enforcement (ALE) Technical Flight Officers, Search and Rescue (SAR) scanners, or anyone with cabin communication needs.

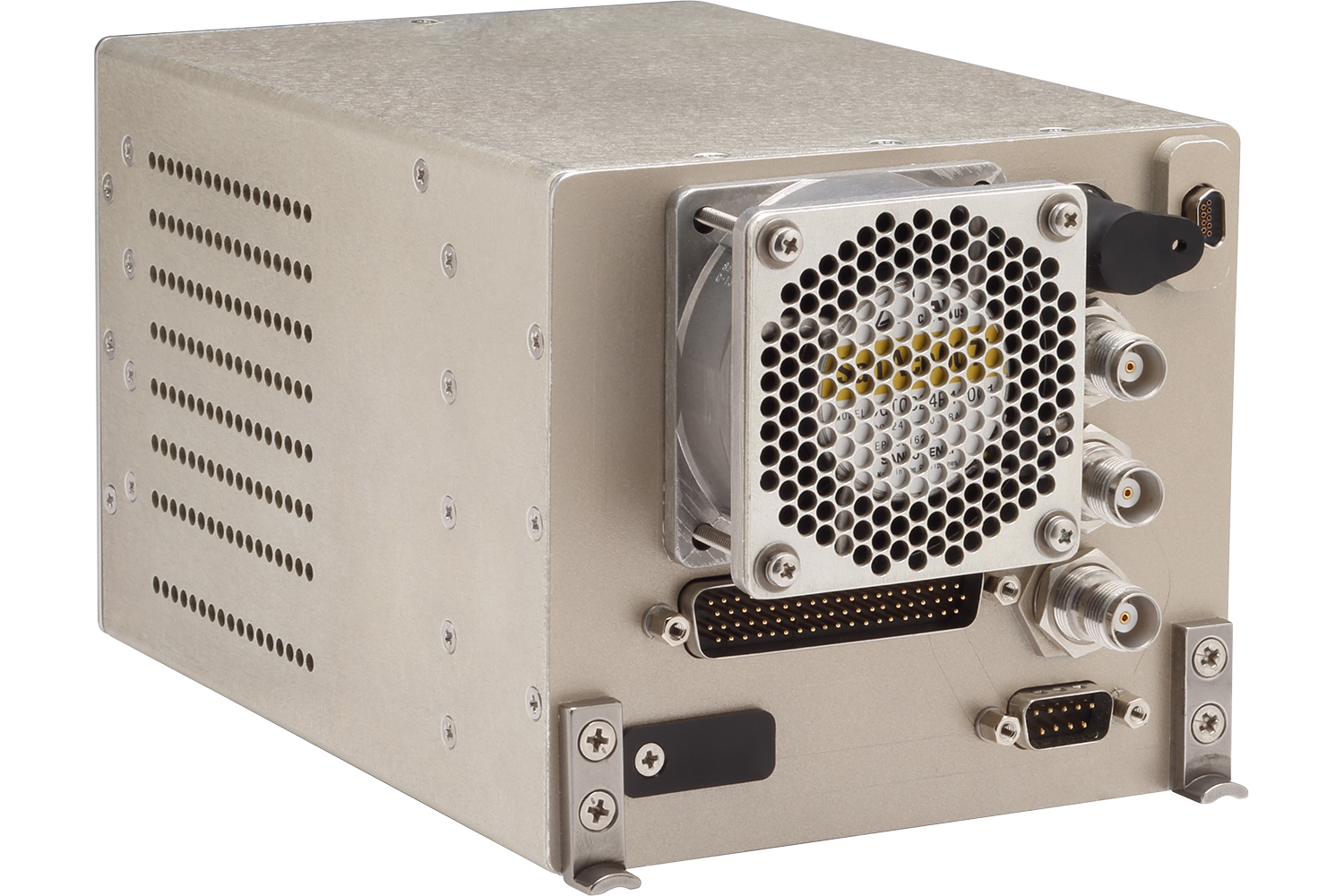

RT-7000 Remote Mount Tactical Radio
The RT-7000 Remote Mount Tactical Radio (RMR) is an LRU that is designed for rack mounted installations in fixed wing aircraft and helicopters and will satisfy all public safety and para-public voice communications needs. The RT-7000 provides P 25 Phase 1 and 2 digital modulation across the entire range. With the addition of up to two modules, it can also cover VHF, UHF, and 700/800 MHz public safety bands including trunking and Motorola-proprietary radio network features.
As a software-defined device, the RT-7000 can be easily be upgraded to meet evolving requirements for software and hardware without replacing the radio. The Remote-Mount Radio can be controlled by a PMR, RCDU, or MCDU with an interface control document available for selected MCDU's.
Interested in the Canyon Aeroconnect Digital Audio Control System?
Click below to visit the DACS Hub Page.
RT-7000 TECHNICAL SPECIFICATIONS
| Weight: | 8.5 lb (3.85 kg), maximum |

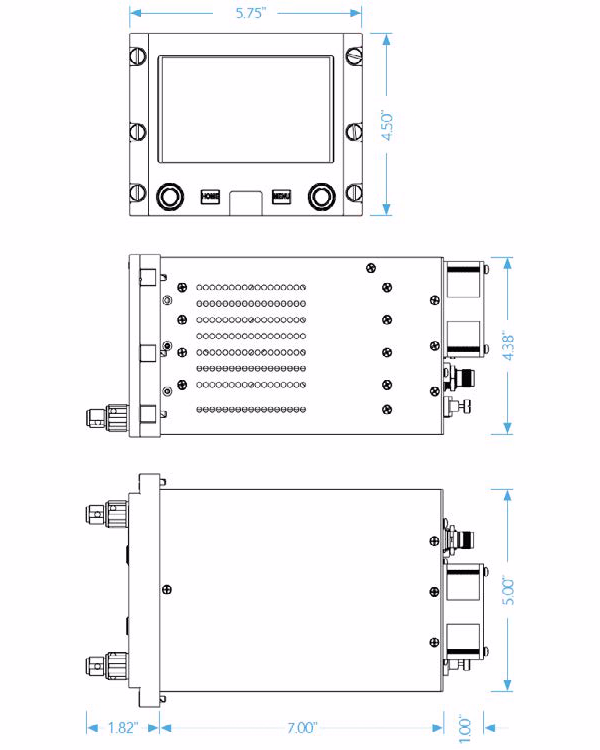

| Dimensions: | 7 x 5.75 x 4.38 in |
| Voltage Requirements: | 27.5 VDC ±20% |
| Temperature: | -4°F to 131°F (-20°C to 55°C) |
| Channel Spacing: | 6.25/8.33/12.5/25 kHz |
| Certification: | TSO/ETSO 169a ATC COM & C113 Display |
| Frequency Range: | 29.7 MHz – 960 MHz AM/FM analog 30 MHz – 50 MHz LMR 30 MHz – 88 MHz military 87.5 MHz – 108 MHz FM broadcast 108 MHz – 118 MHz VOR voice 118 MHz – 154 ATC and Civil Air Patrol 136 MHz – 174 MHz LMR 156 MHz – 174 MHz Maritime 225 MHz – 400 MHz Military 380 MHz – 520 MHz LMR 764 MHz – 960 MHz LMR |
| Transit Power: | ATC COMS: 4W, minimum AM: 4W, minimum FM: 10W, minimum P-25: VHF – 6W, UHF – 5W, 700/800 MHz – 3W |
| APCO P-25: | All P-25 Bands — Conventional Common Air Interface (CAI), Phase I, II Trunking, Analog Trunking (SmartZone, SmartNet) |
| Encryption: | FIPS 140-2, Level 2/3 P-25 AES & DES Analog DES, DES-XL, DVP P-25 OTAR Multikey |
