AVX-10K & OSPREY

The AVX-10K is a comprehensive flight line test solution providing today’s Avionics Technician with an easy to use instrument for many maintenance needs. From a quick airborne system auto-test to an in-depth troubleshooting tool, testing can conveniently be done around the aircraft or in the cockpit using your mobile device. Easy set-up, quick testing and reporting transferable via USB, Ethernet and wireless all done from an easy user interface, or the VIAVI Solutions Mobile Tech App on your mobile device.

Building on nearly 50 years of providing superior avionics test sets, the AVX-10K is a compact, durable tester capable of providing a wide range of quick airborne system auto-tests and in-depth troubleshooting using software specific applications.

Use the AVX-10K To Test These Avionics Systems

Communications: AM/FM, HF, VHF, UHF, SSB, SELCAL

Navigation: ILS (LOC, GS, MB), VOR, DME, ELT 121.5/243/406MHz

Surveillance: ATCRBS Mode A, ATCRBS Mode C, Mode S, ADS-B, GICB, UAT, FIS-B, Traffic (Target Gen), TCAS I, TCAS II, TAS

Other Test Tools: VSWR, DTF

Features:

• Configurable test capability

• Intuitive user interface

• Software defined applications

• Remote operation

• Android™ and iOS® compatible

• Guided Test for Navigation Applications

• Built-in GPS receiver

• International test configurations

• Purchase only the test options that you need

• Time saving ease of operation

• Easily updated with future applications

• Conveniently test in and around the aircraft from your mobile device

• Recall saved test sequences for future use

• Provides accurate positional data for ADS-B testing

• Compliant with global regulatory requirements

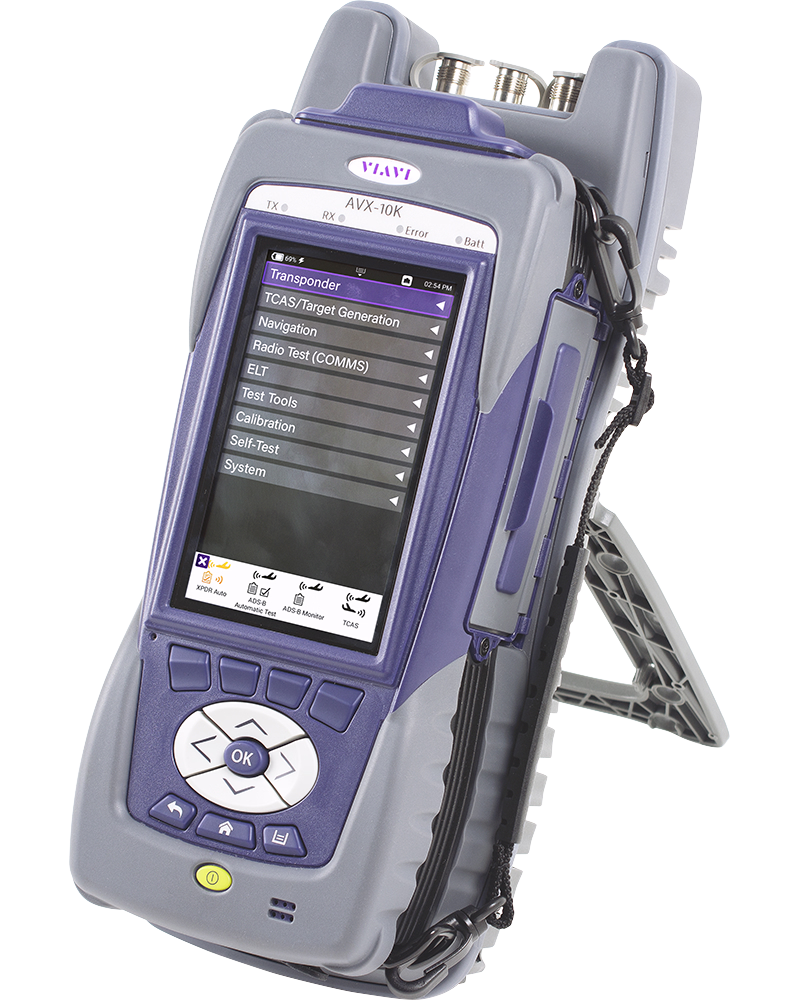

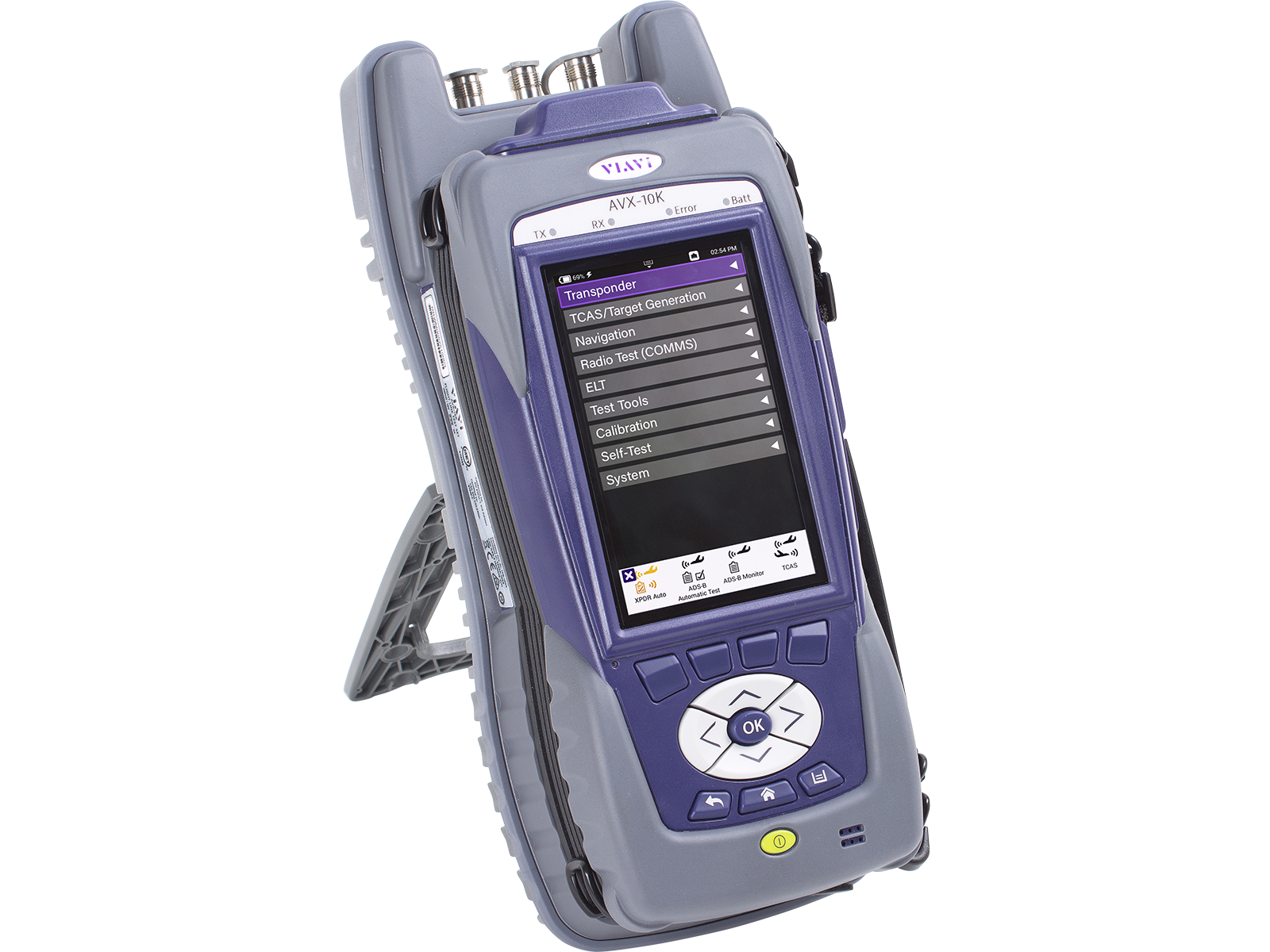

AVX-10K Flight Line Test Set

Version (EDMO# AVX10KFLTS) includes the AVX-10K Base Unit, AC Power Adapter, Hand Strap, Operations and Quick Start Manuals.

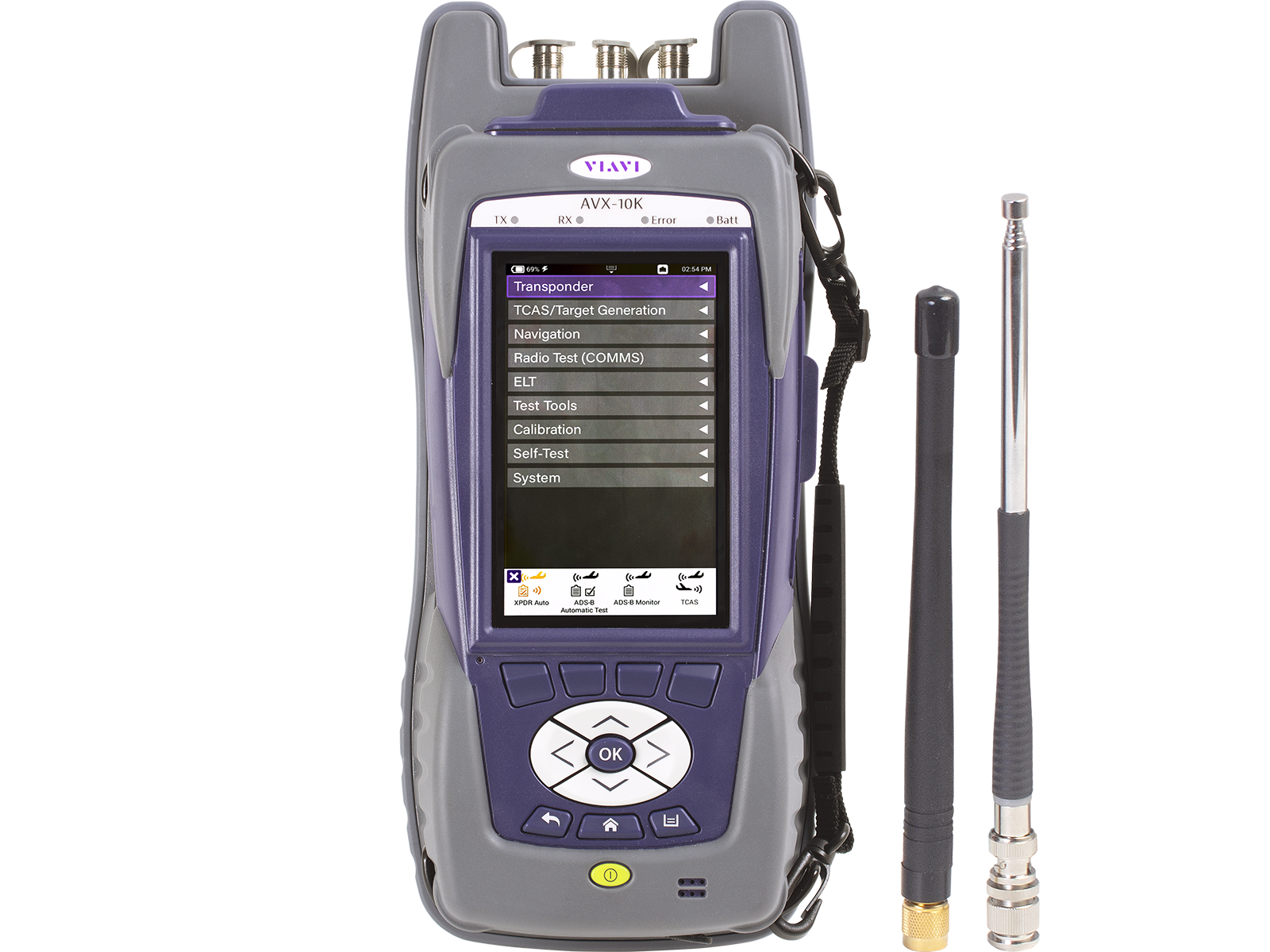

Navigation Package

Version (EDMO# AVX10K-NAV) includes the AVX-10K Base Unit, AC Power Adapter, Hand Strap, Operations and Quick Start Manuals, Hard Transit Carrying Case, Adapter Kit Short/Load, VOR/ILS Antenna, Marker Beacon Antenna, 6' Coax Cable, Software Options: DME, Navigation (ILS/MB/VOR), and Radio Test AM/FM (Comms).

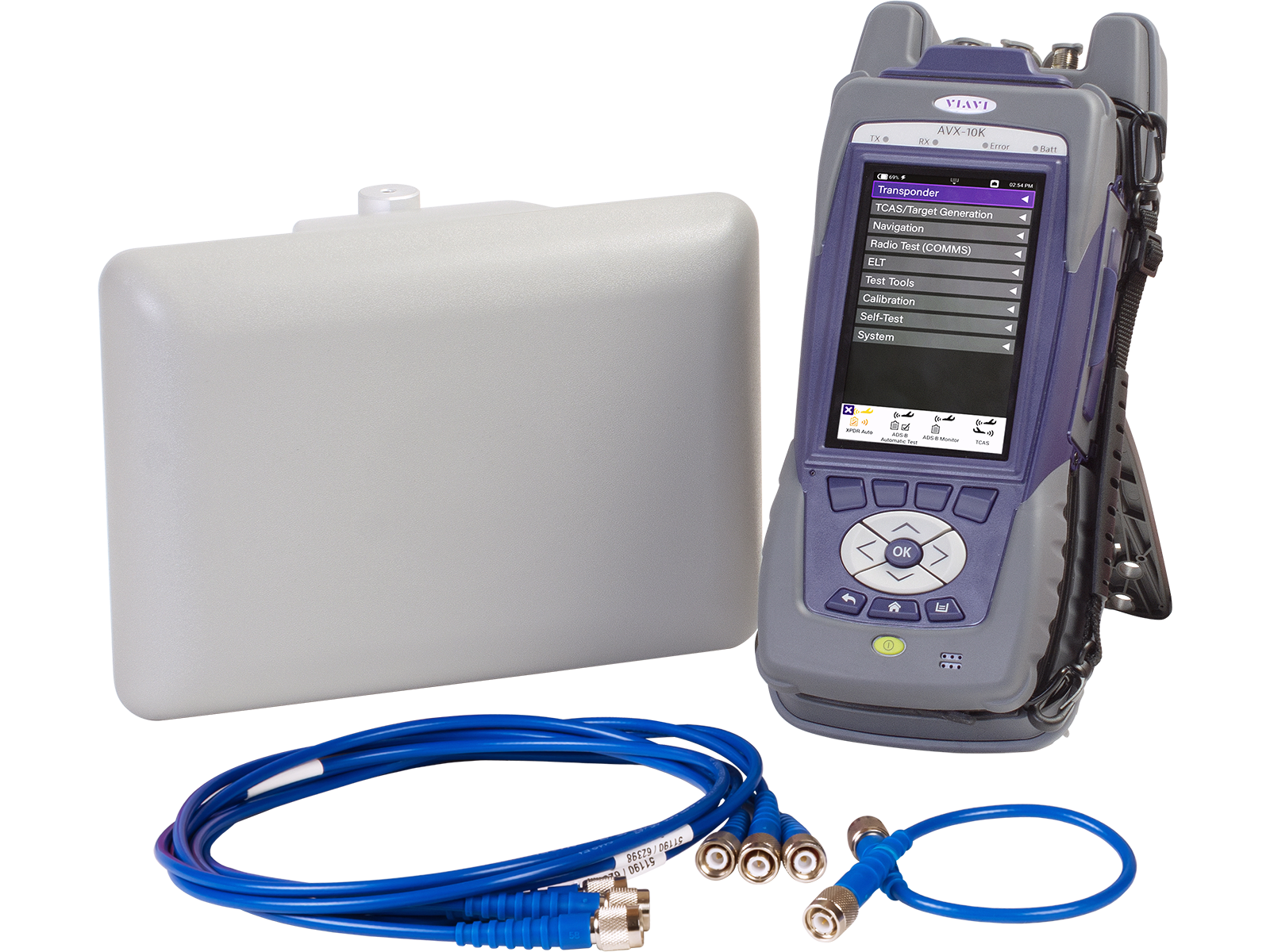

Surveillance Package

Version (EDMO# AVX10KSVLC) includes the AVX-10K Base Unit, AC Power Adapter, Hand Strap, Operations and Quick Start Manuals, Hard Transit Carrying Case, Adapter Kit Short/Load, 6' Coax Cable, RF Flat Panel Antenna with 1' Cable, Software Options: Transponder Modes (A,C,S), ADS-B in/out/GICB/Target Gen/FIS-B, and DME.

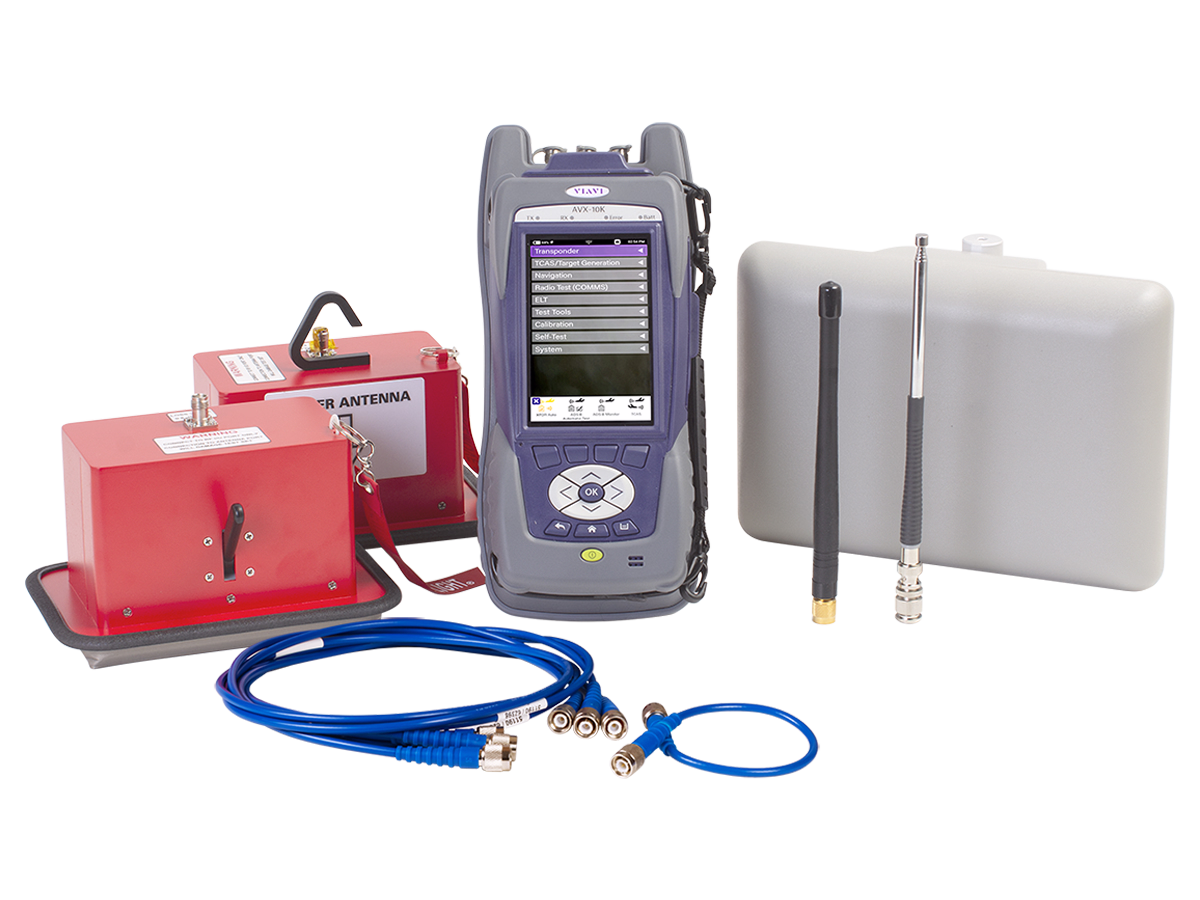

Communications, Navigation, and Surveillance Package

Version (EDMO# AVX10K-CNS) includes the AVX-10K Base Unit, AC Power Adapter, Hand Strap, Operations and Quick Start Manuals, Hard Transit Carrying Case, Adapter Kit Short/Load, VOR/ILS Antenna, Marker Beacon Antenna, 6' Coax Cable, RF Flat Panel Antenna with 1' Cable, UC-584 & UC-584S coupler with two 25' cables, Software Options: Transponder Modes (A,C,S), ADS-B in/out/GICB/Target Gen/FIS-B, DME, Navigation (ILS/MB/VOR), Radio Test AM/FM (Comms)

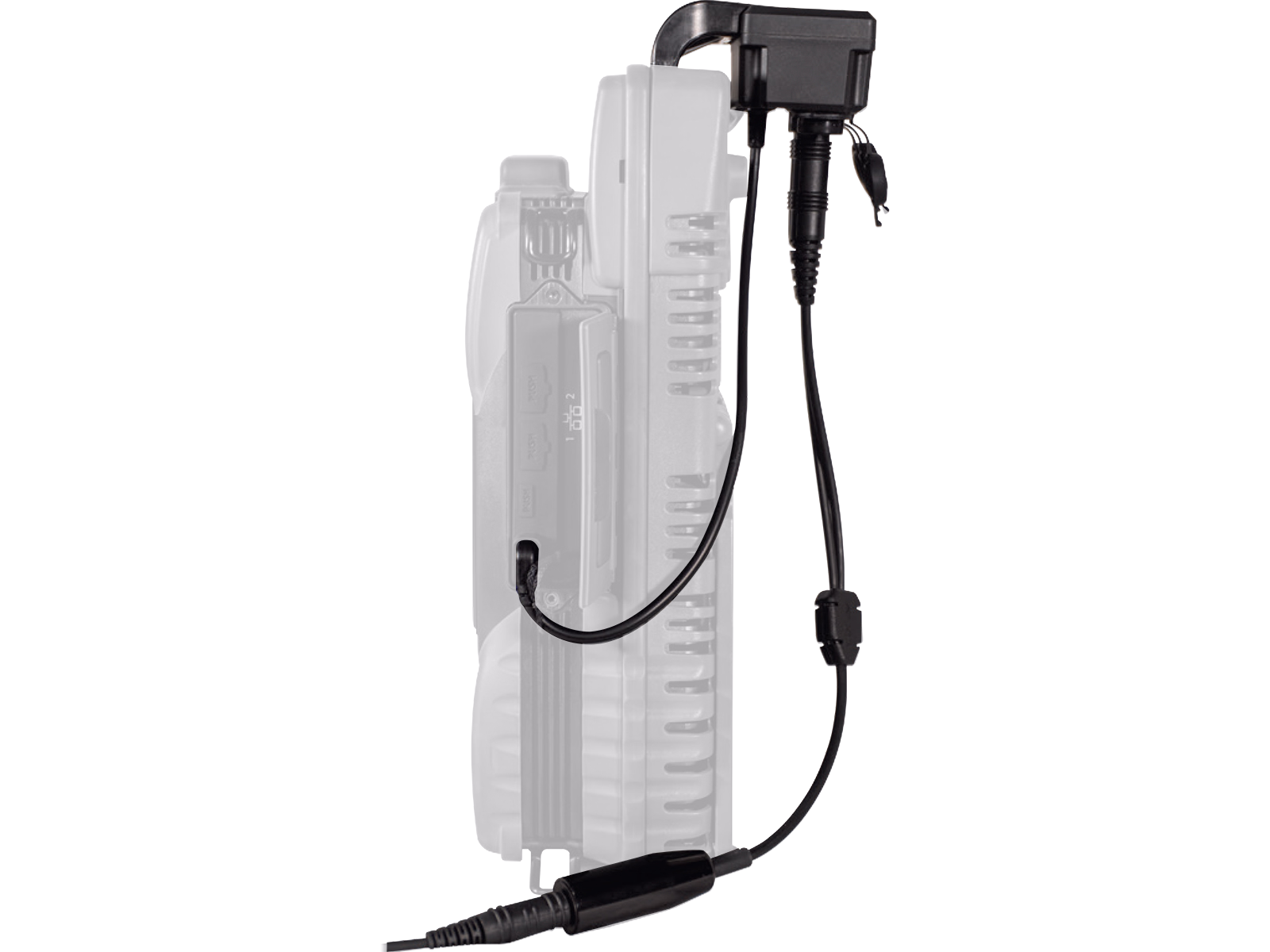

Enhanced COMMS Headset Adapter

The new Enhanced COMMS headset adapter (EDMO# AC10K-HDST), when paired with the AVX-10K-SECOM software option, will allow users to exercise their operational checks with greater efficiency than traditional tests. This headset adapter is compatible with both dual and single plugs for high and low impedance headsets commonly used on aircraft. Technicians can do two-way radio communication between the aircraft and the AVX-10K. The way that this differs from a handheld radio is that the power level can be measured to ensure the aircraft is capable of receiving and transmitting at sufficient power levels to be received at long distances.

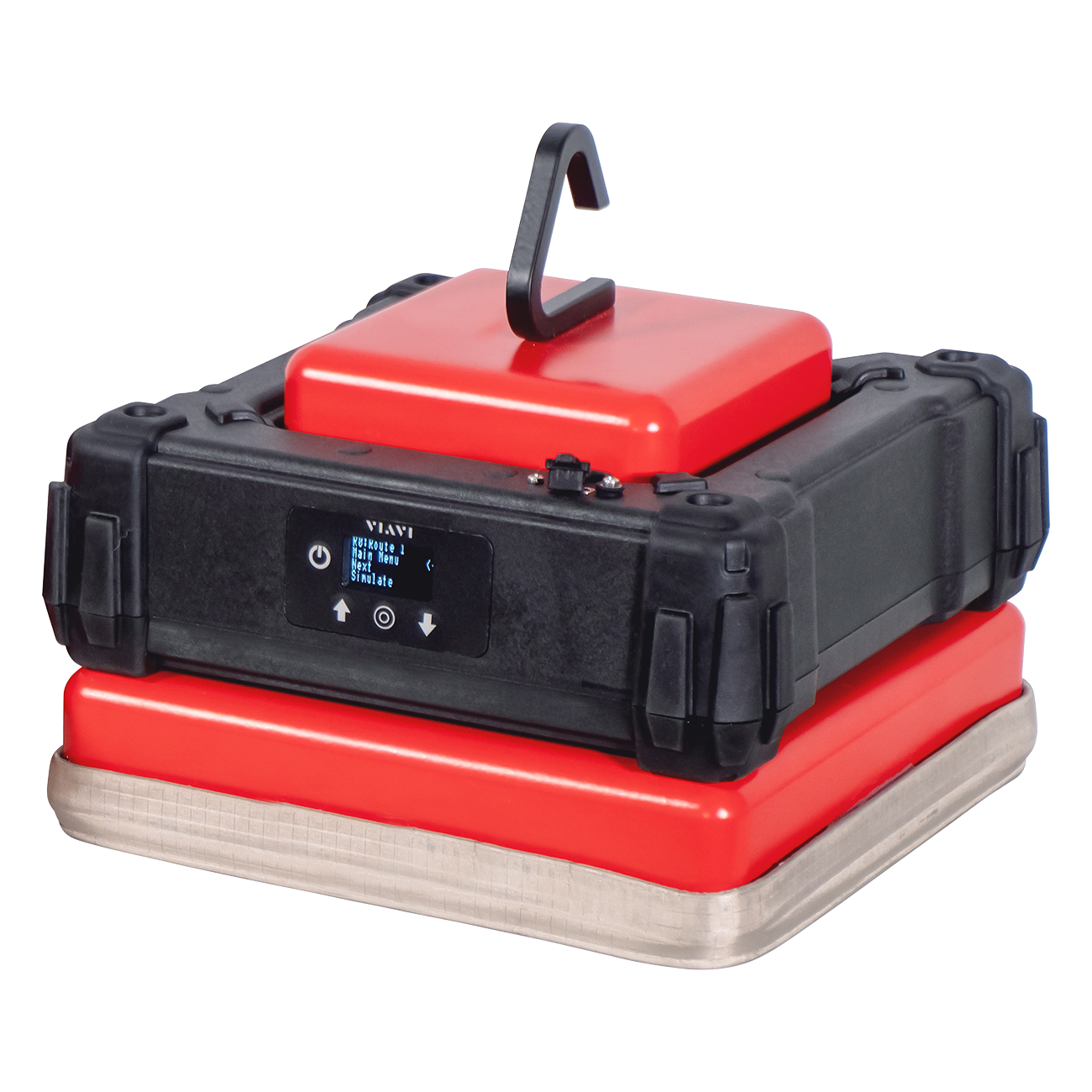

The VIAVI OSPREY (Operational Simulated Positioning for Real-time Evaluation of Systems) GPS Simulator provides static waypoints and dynamic routes to be simulated for avionics testing purposes. Daily Almanac data can be seamlessly uploaded to the OSPREY, simplifying the process of ensuring a position lock for GPS Receivers.

Features:

• Global avionics test set support

• Fully self-contained

• Static and dynamic simulations

• Automated almanac upload process

• 10-channel configuration

• Real-time transcoding

• Remote control interface via mobile application for both iOS and Android devices

• Single or dual coupler configurations

• GPS signals simulated: L1
